| Diagrama - Arrancador / Bateria y conexiones . Vehiculos
NISSAN 2015 En estos diagramas se describen los circuitos que conectan y activan el funcionamiento del Arrancador [Starter, motor de arranque] |
 |
| Los Diagramas, listados abajo, se refieren unicamente al Circuito electrico que involucra: Arrancador [starter] - NISSAN 2015 - Arrancador = Starter, Motor de arranque - |
| VERSA NOTE: S PLUS | |

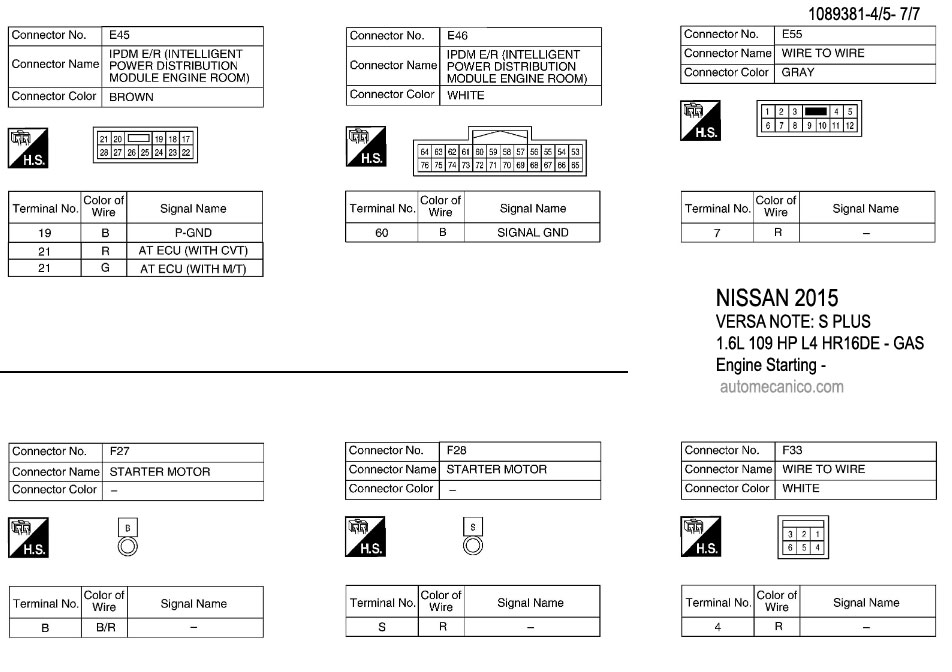

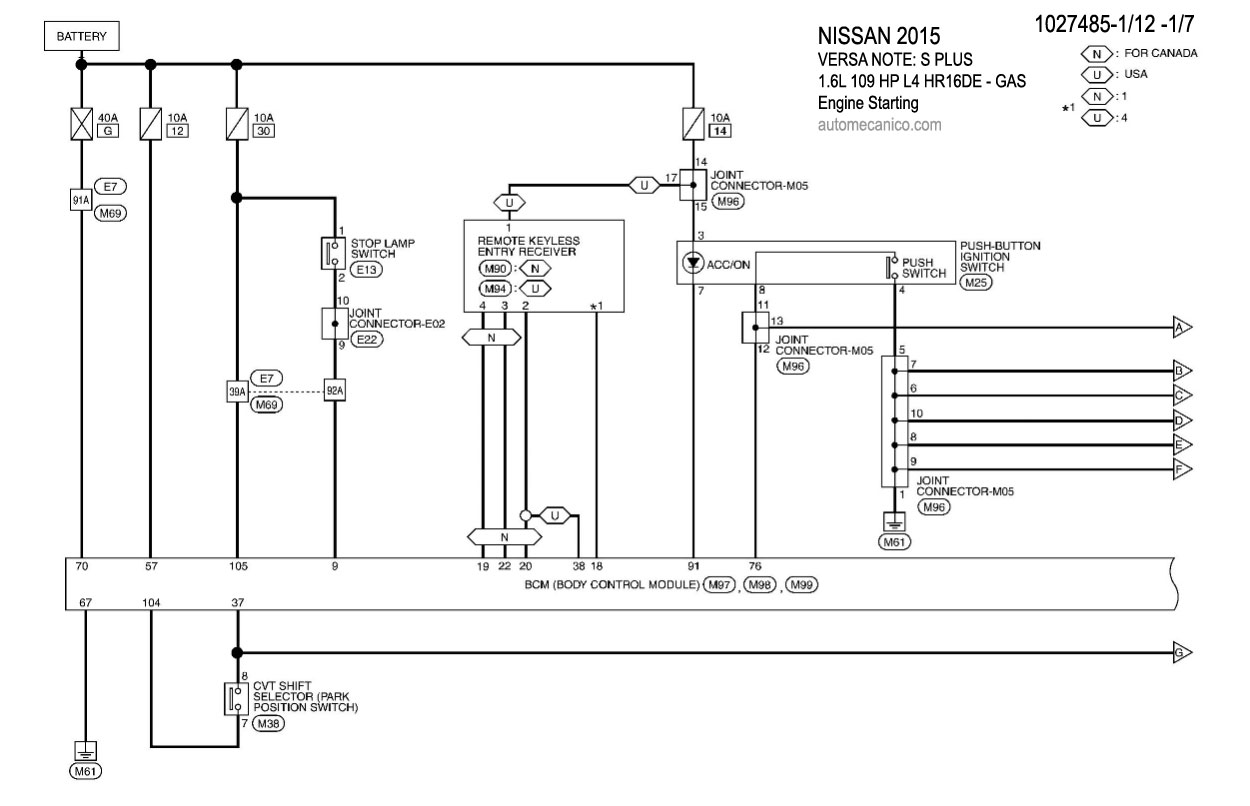

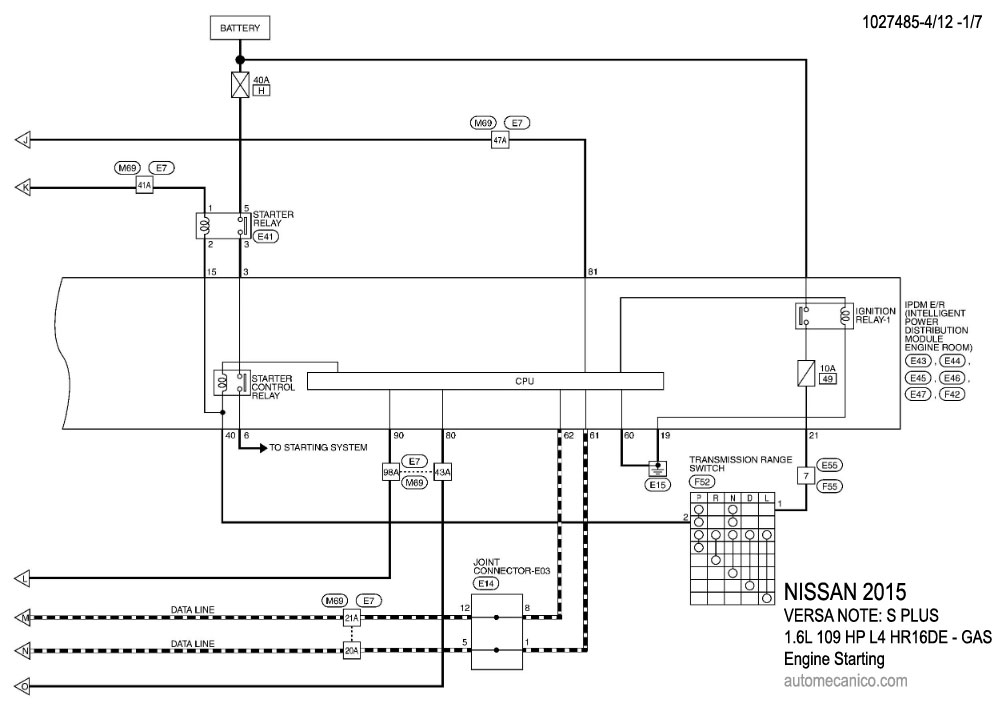

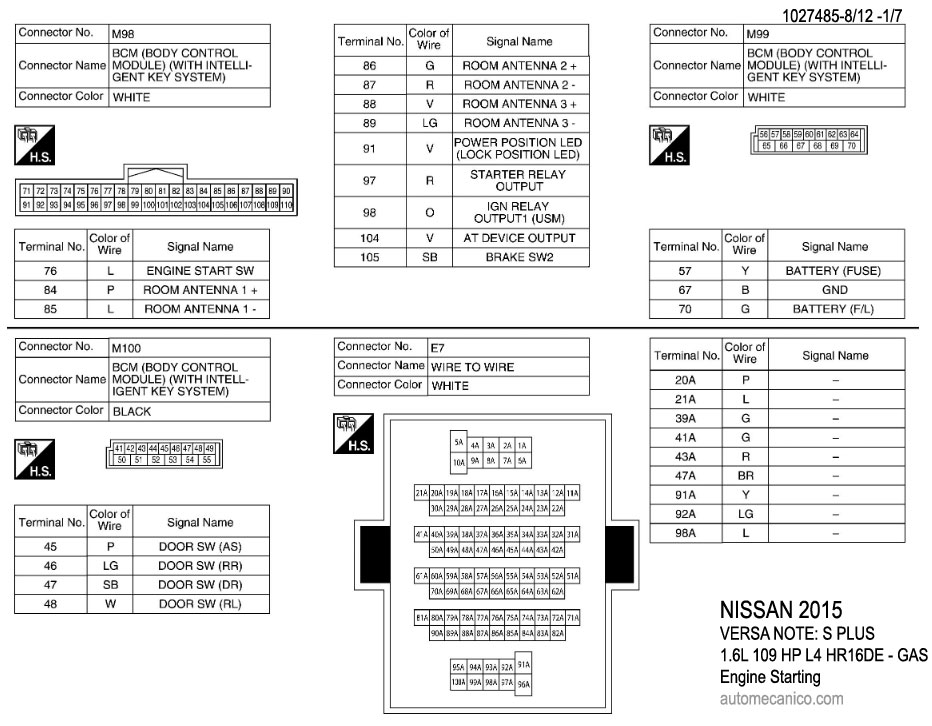

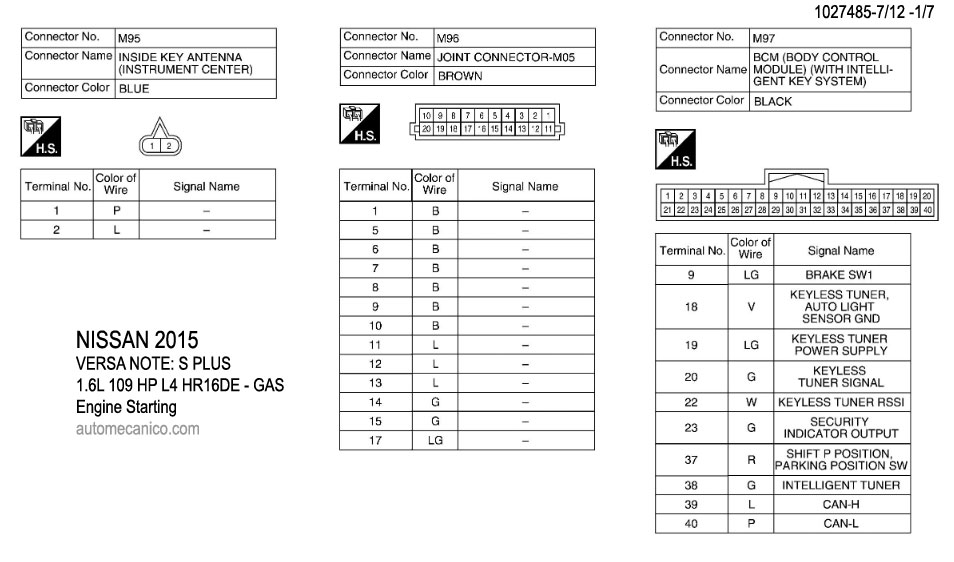

| 1.6L - 4 Cil. - HR16DE - 1/12 - 1/7 | Engine Starting |

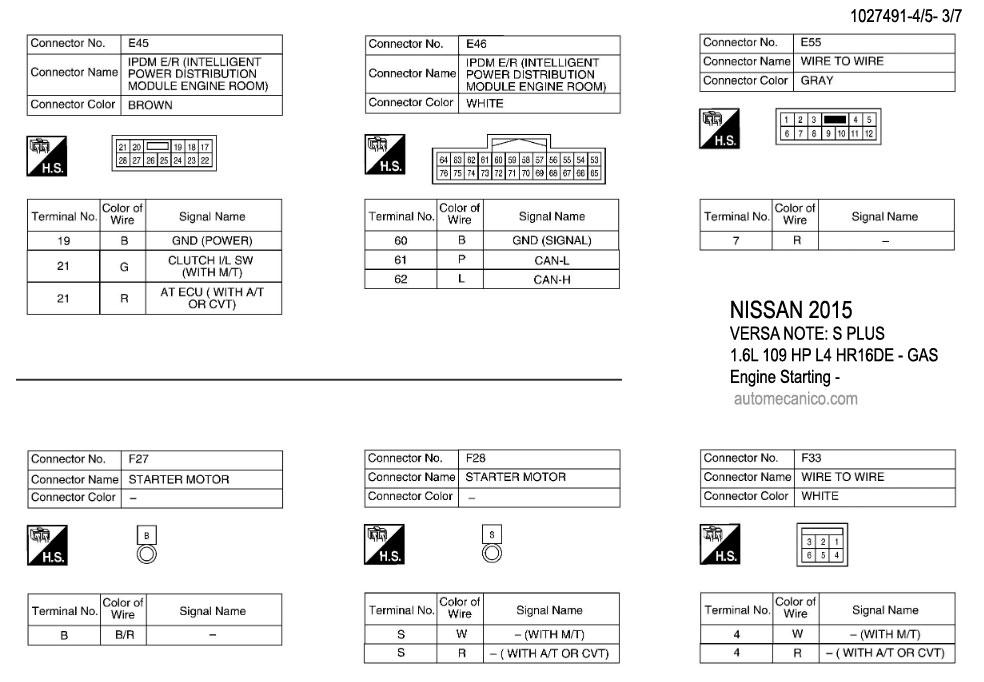

| 1.6L - 4 Cil. - HR16DE - 2/12 | Engine Starting |

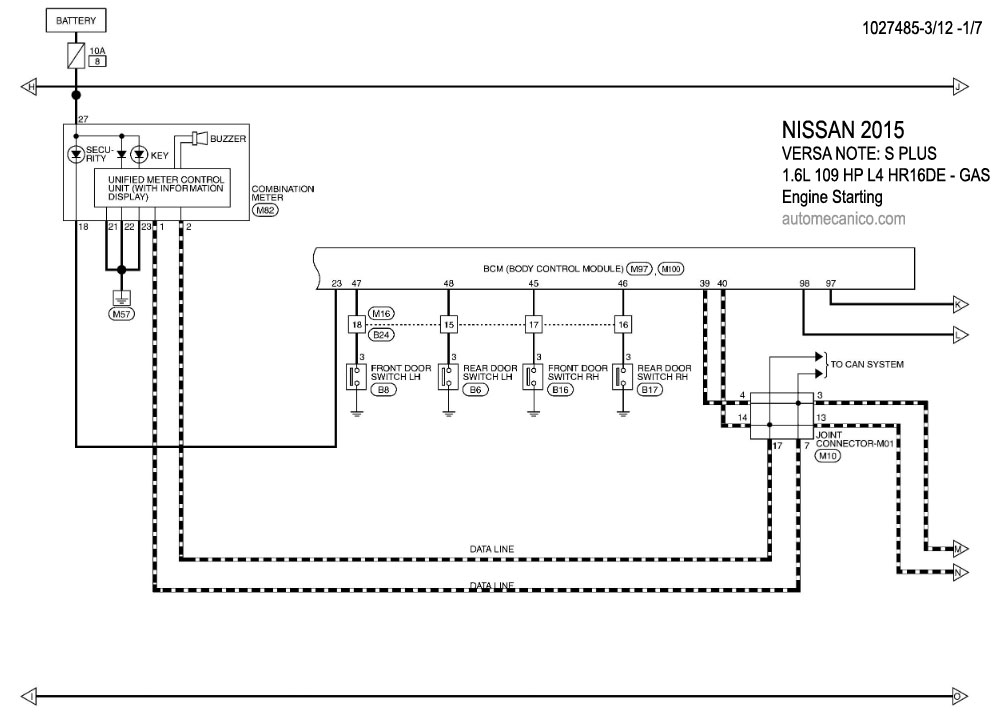

| 1.6L - 4 Cil. - HR16DE - 3/12 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 4/12 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 5/12 | Engine Starting |

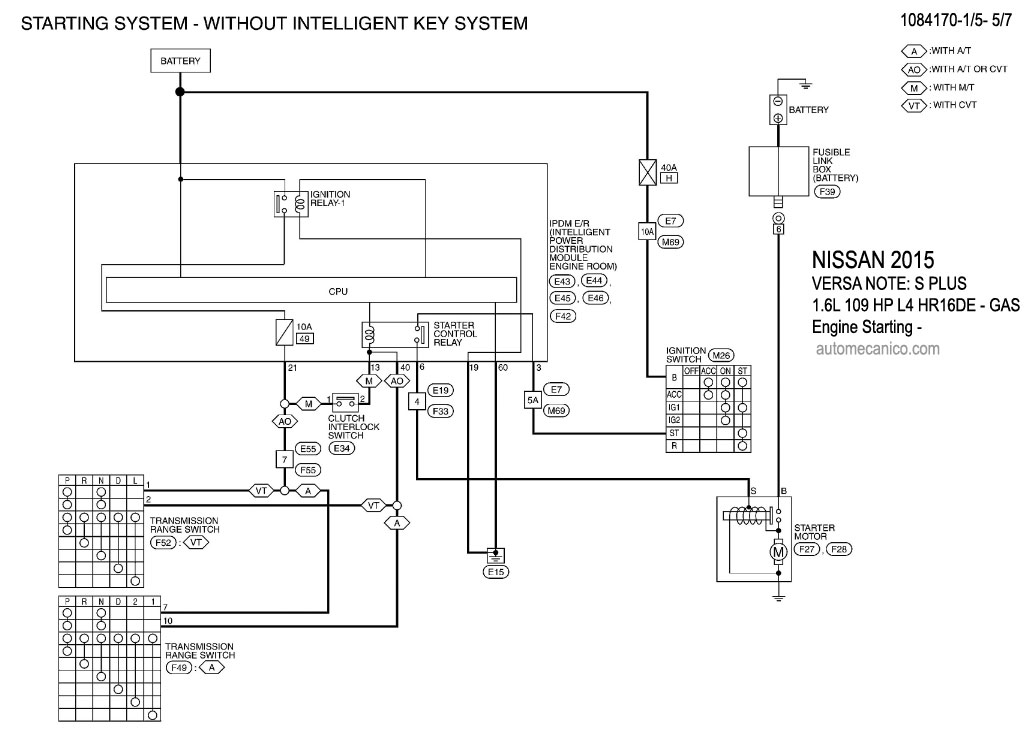

| 1.6L - 4 Cil. - HR16DE - 6/12 | Engine Starting |

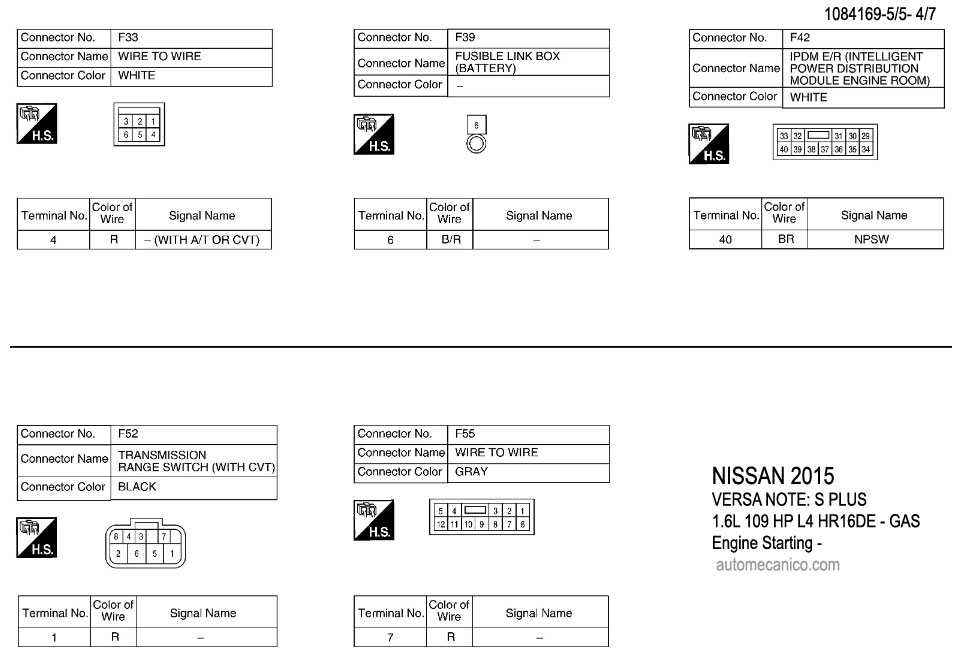

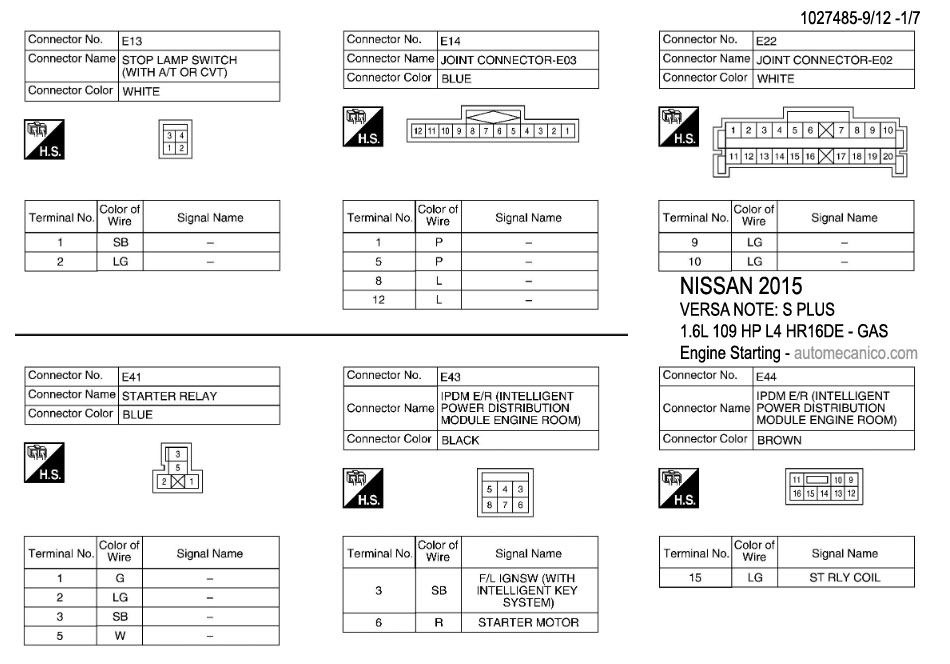

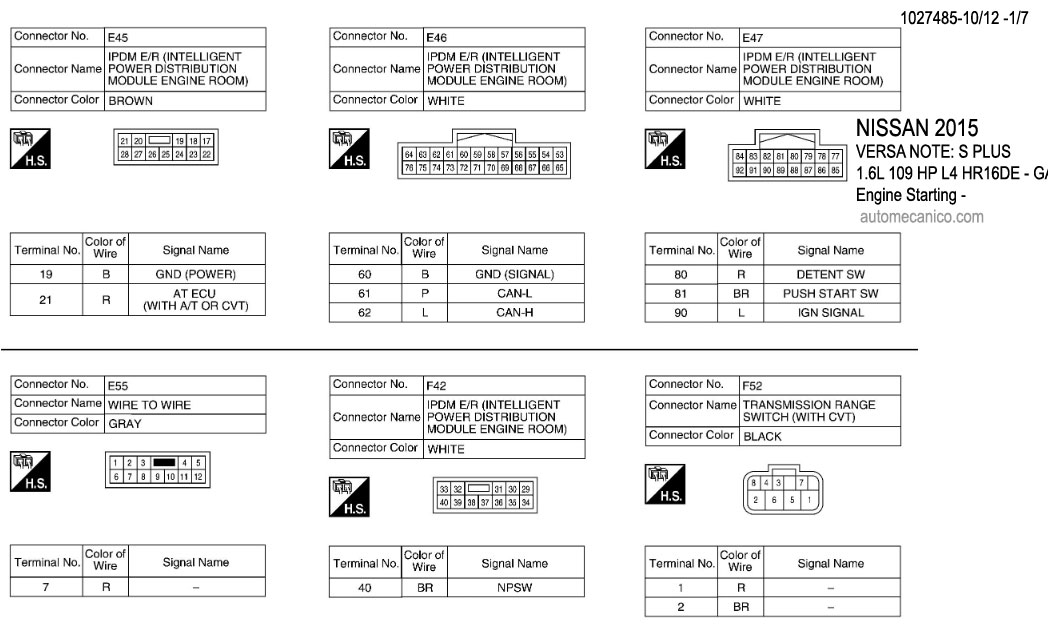

| 1.6L - 4 Cil. - HR16DE - 7/12 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 8/12 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 9/12 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 10/12 | Engine Starting |

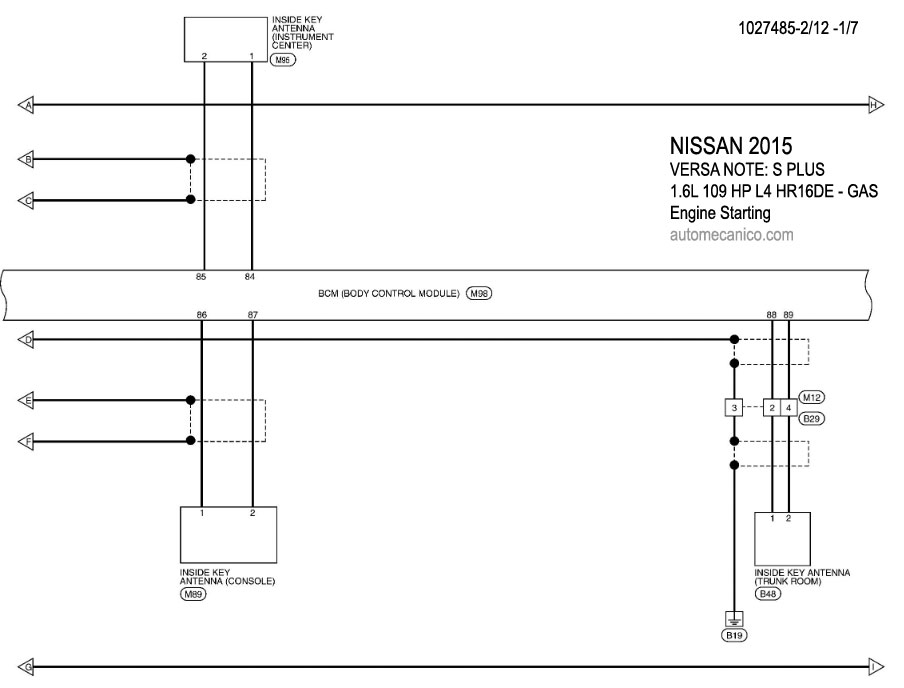

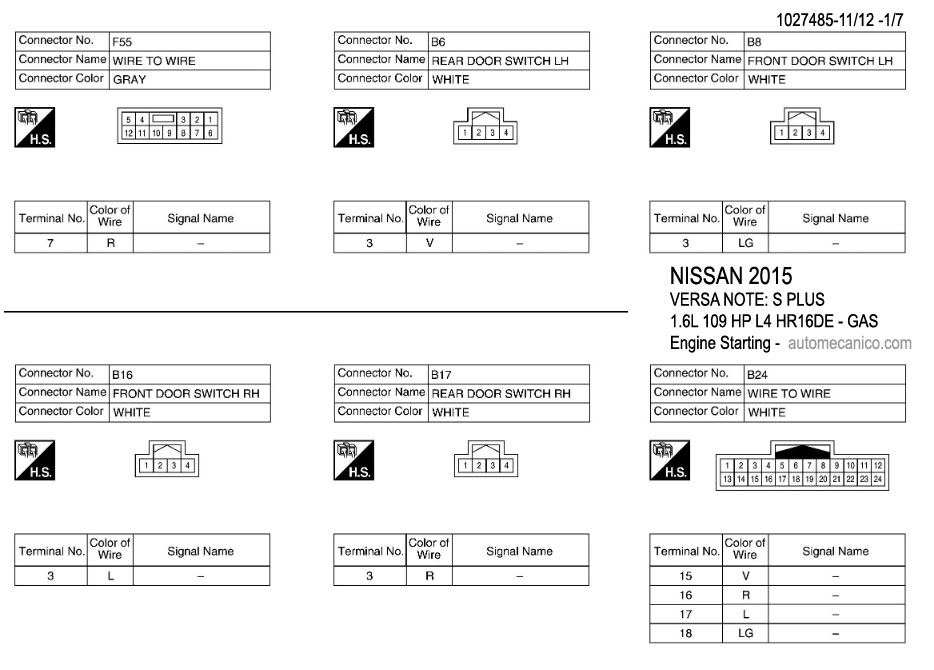

| 1.6L - 4 Cil. - HR16DE - 11/12 | Engine Starting |

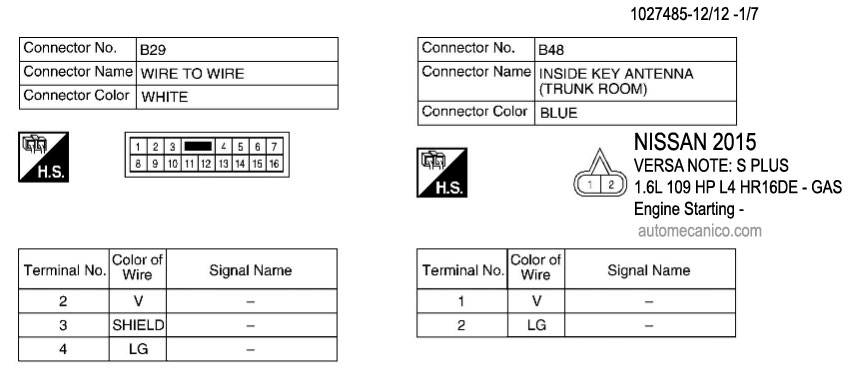

| 1.6L - 4 Cil. - HR16DE - 12/12 | Engine Starting |

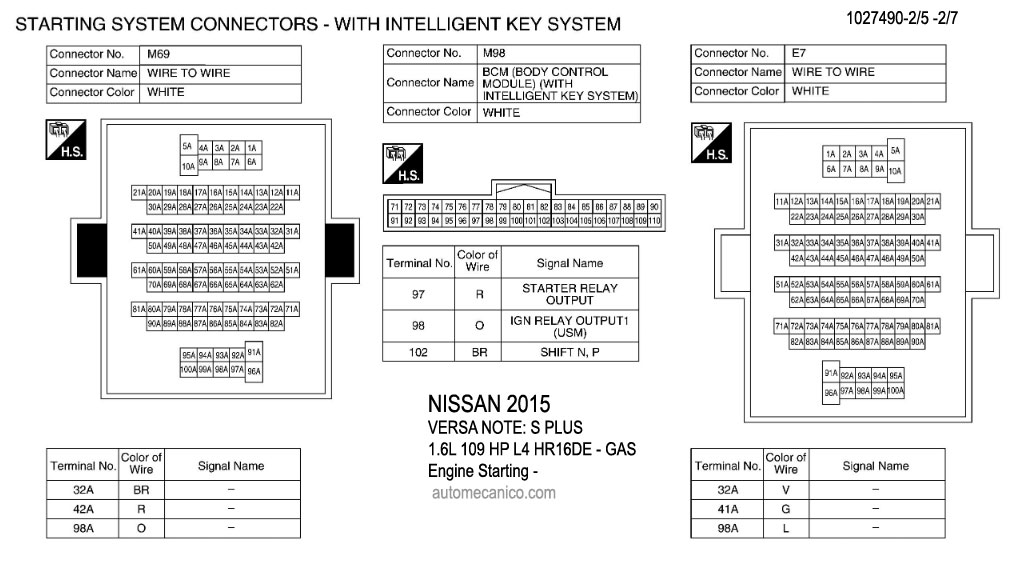

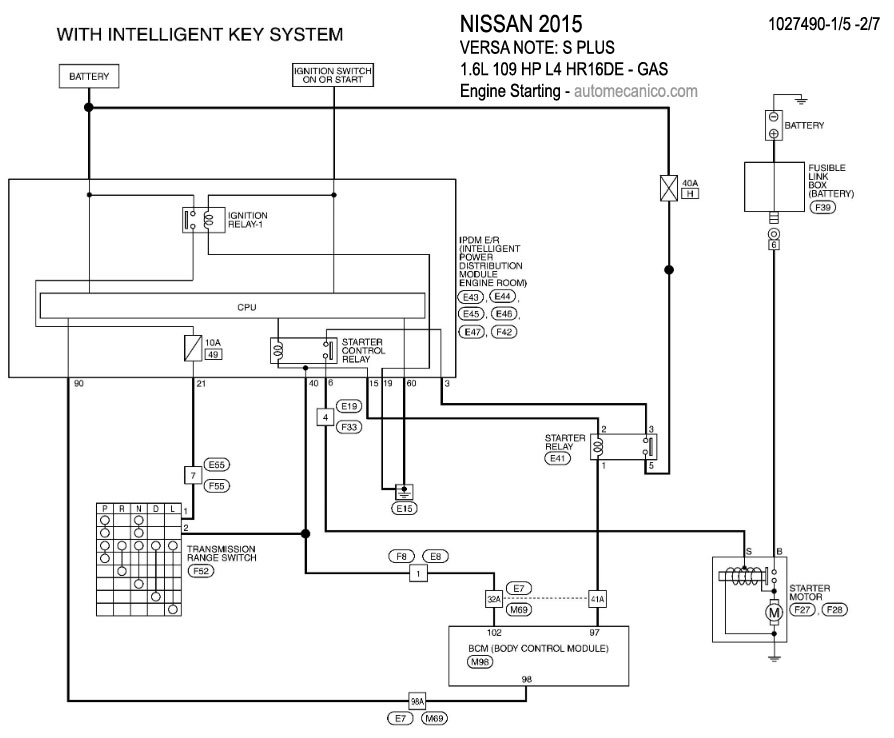

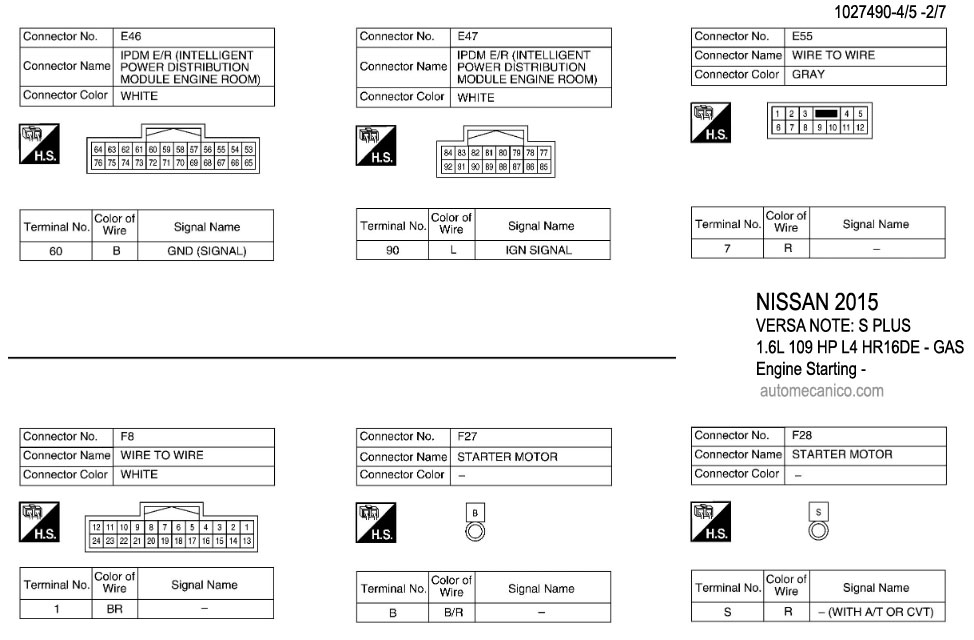

| 1.6L - 4 Cil. - HR16DE - With Intelligent Key - 1/5 - 2/7 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 2/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 3/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 4/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 5/5 | Engine Starting |

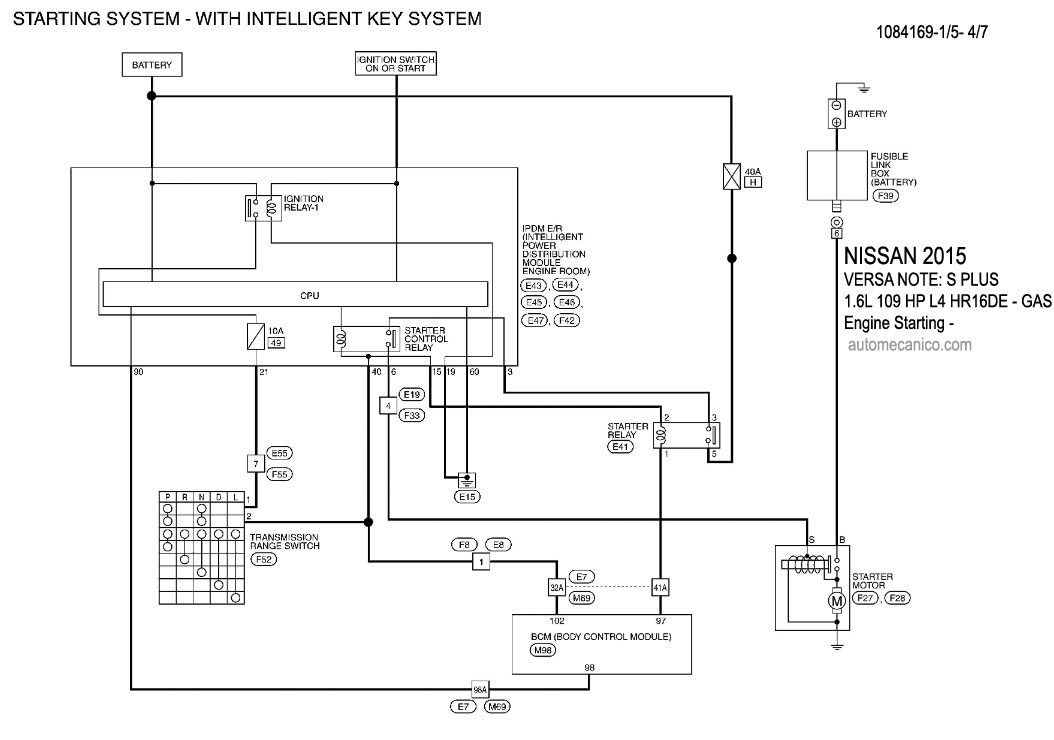

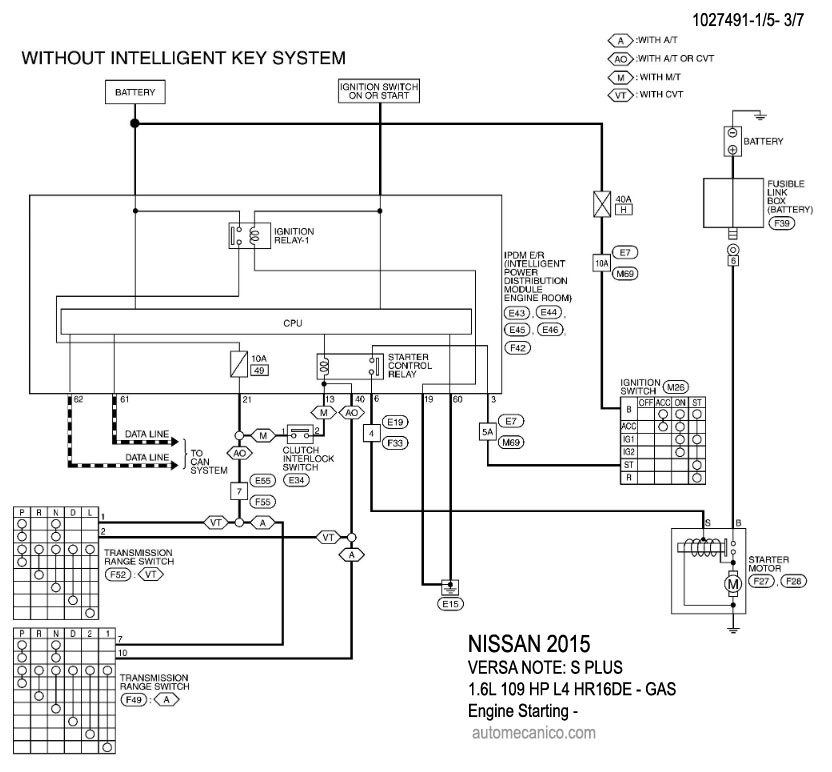

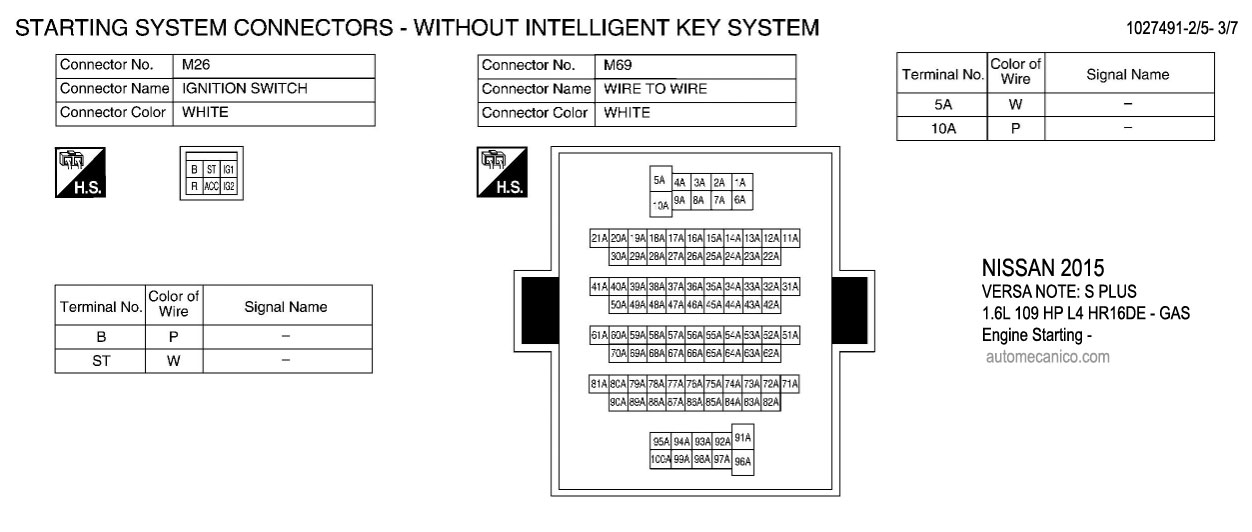

| 1.6L - 4 Cil. - HR16DE - With/Out Intelligent Key - 1/5 - 3/7 | Engine Starting |

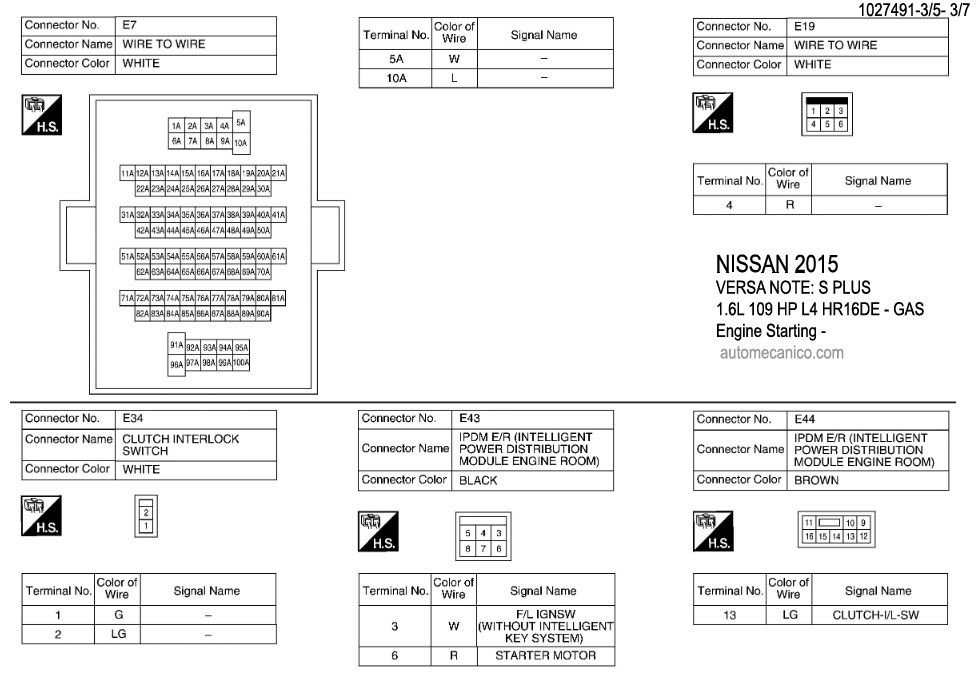

| 1.6L - 4 Cil. - HR16DE - 2/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 3/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 4/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 5/5 | Engine Starting |

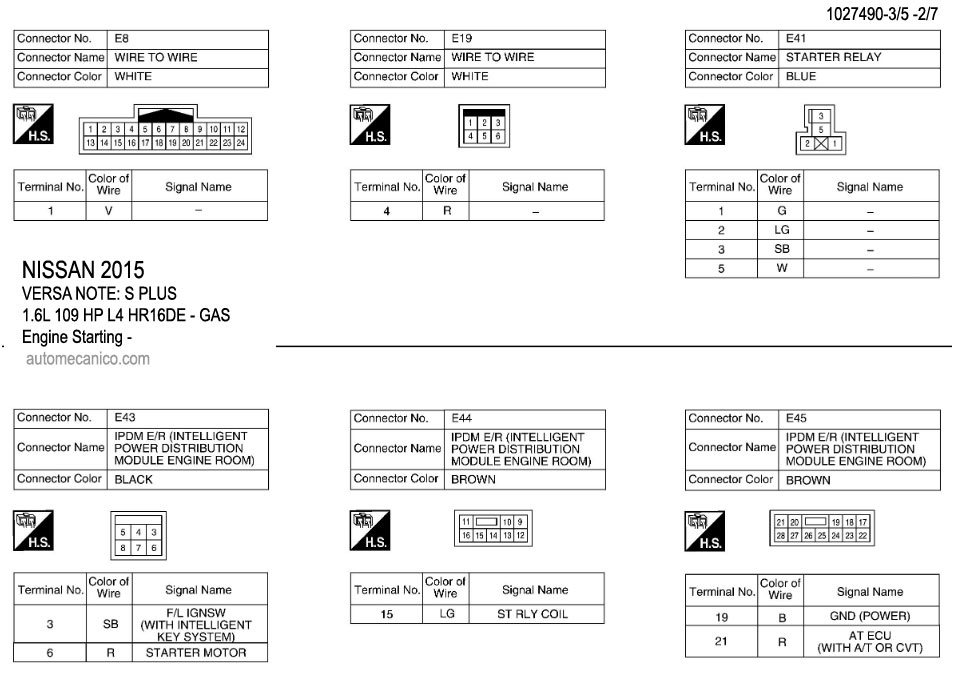

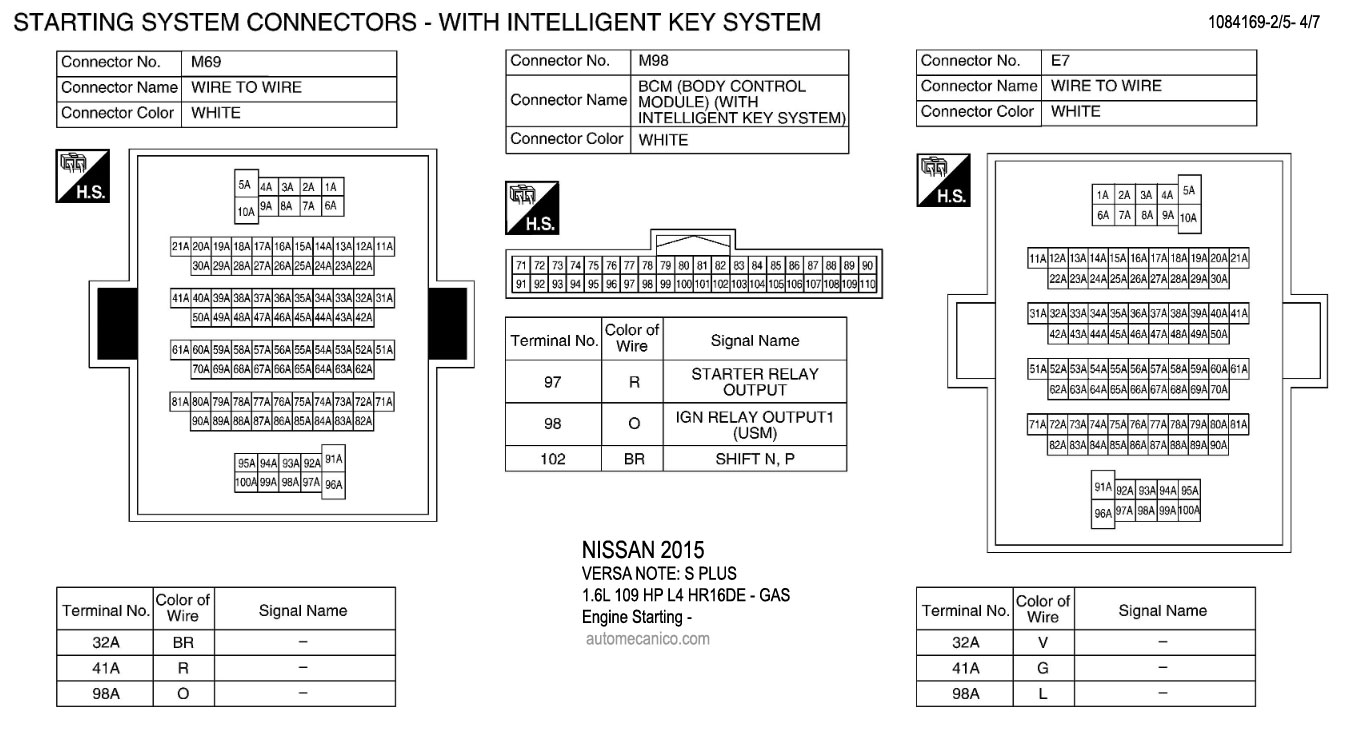

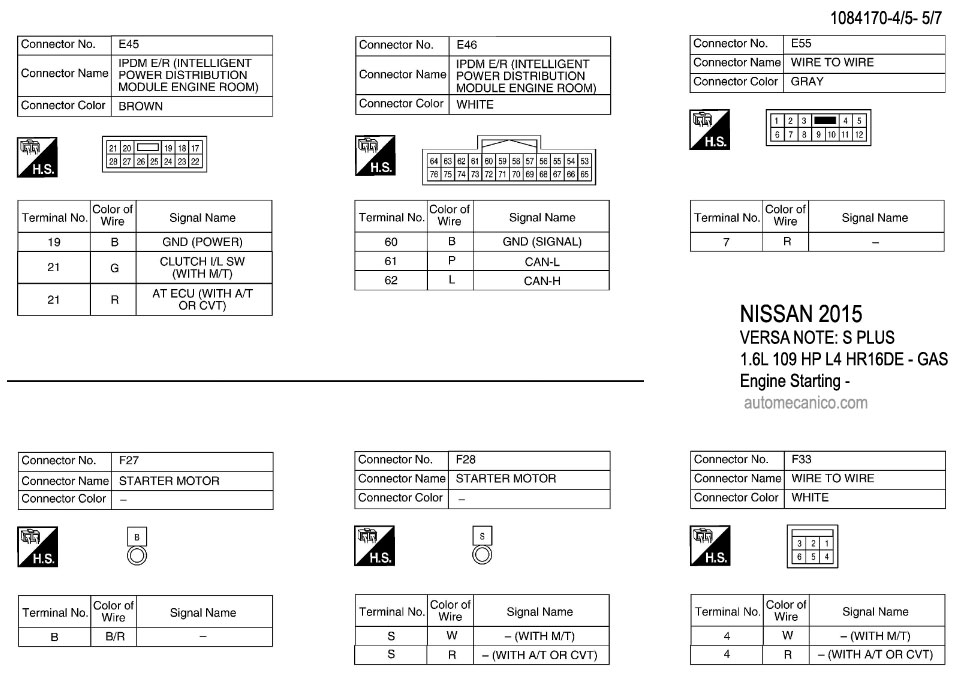

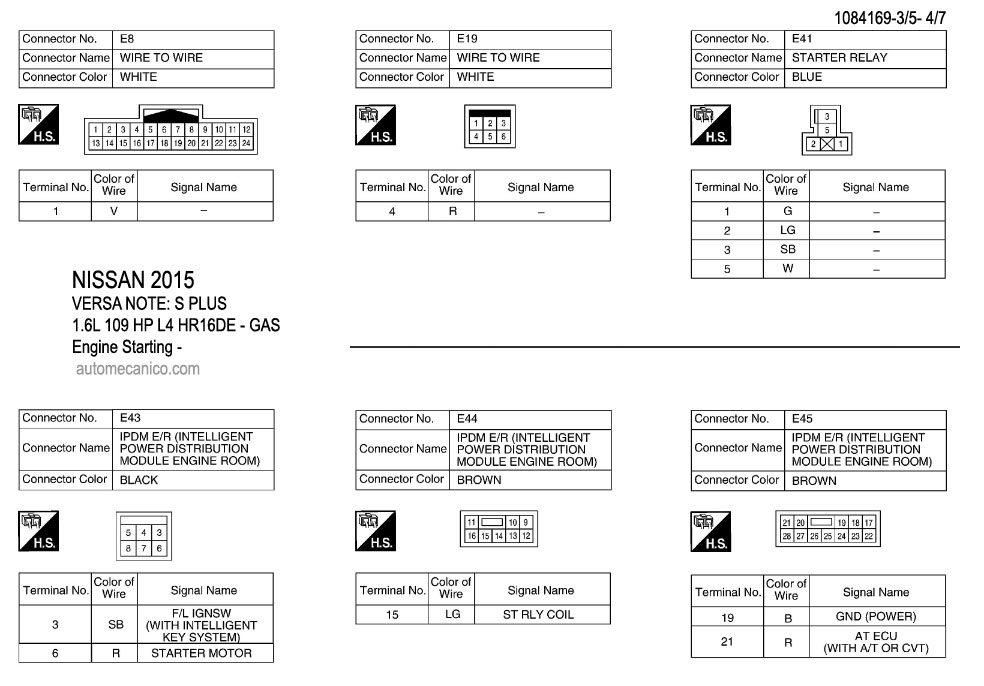

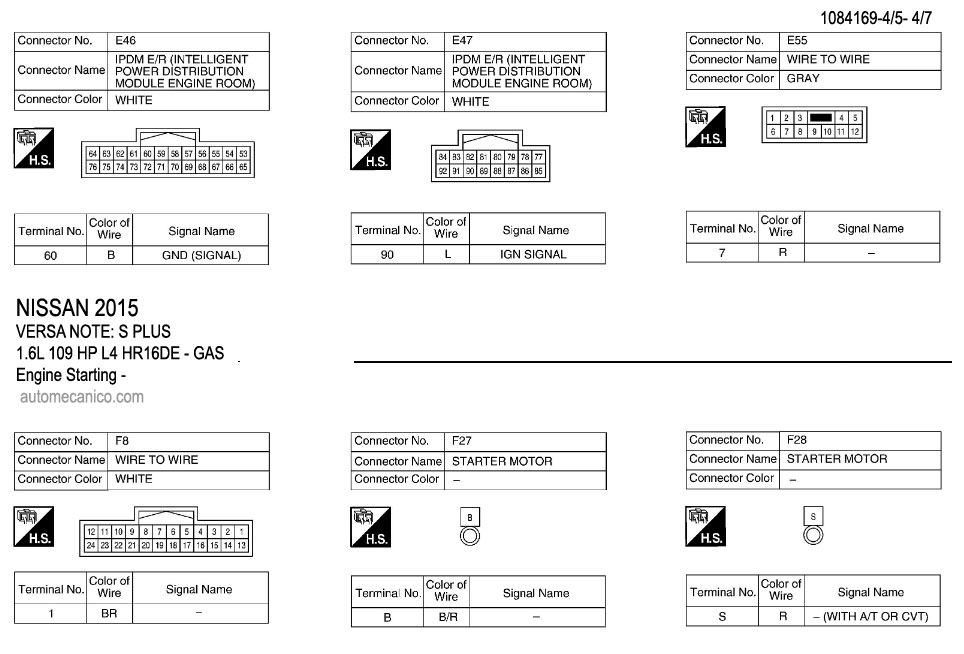

| 1.6L - 4 Cil. - HR16DE -With Intelligent Key - 1/5 - 4/7 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 2/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 3/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 4/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 5/5 | Engine Starting |

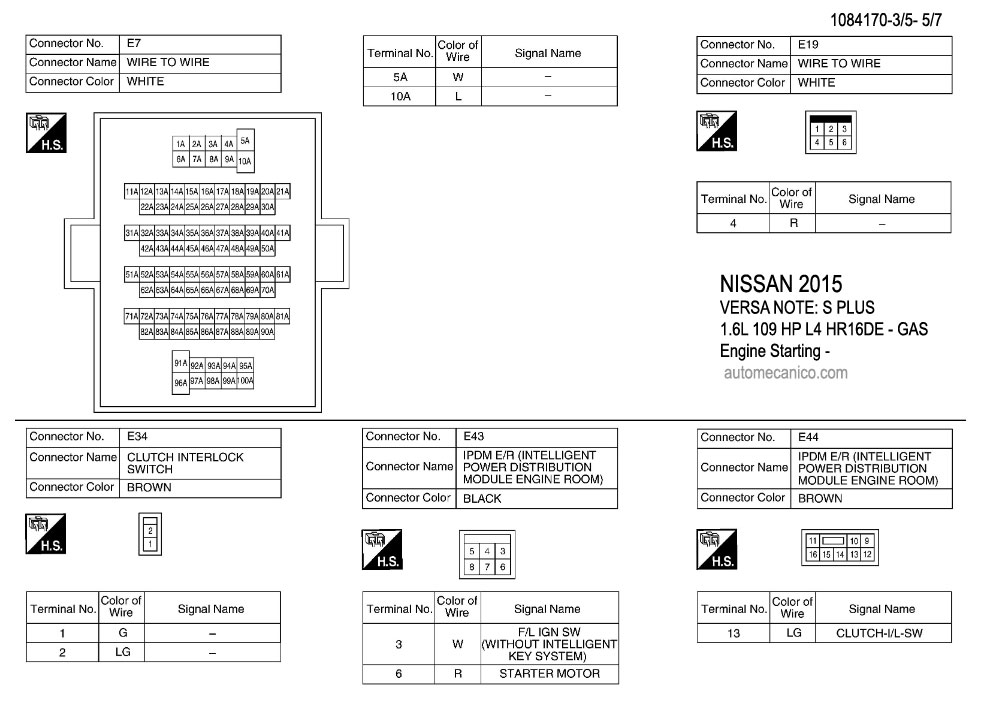

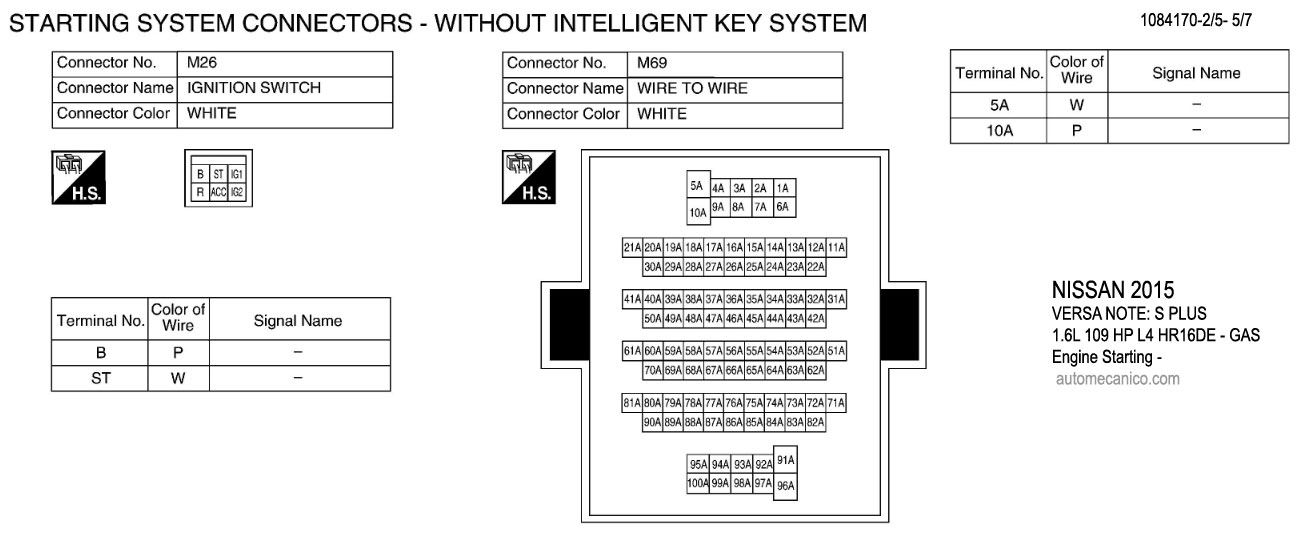

| 1.6L - 4 Cil. - HR16DE - With/Out Intelligent Key - 1/5 - 5/7 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 2/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 3/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 4/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 5/5 | Engine Starting |

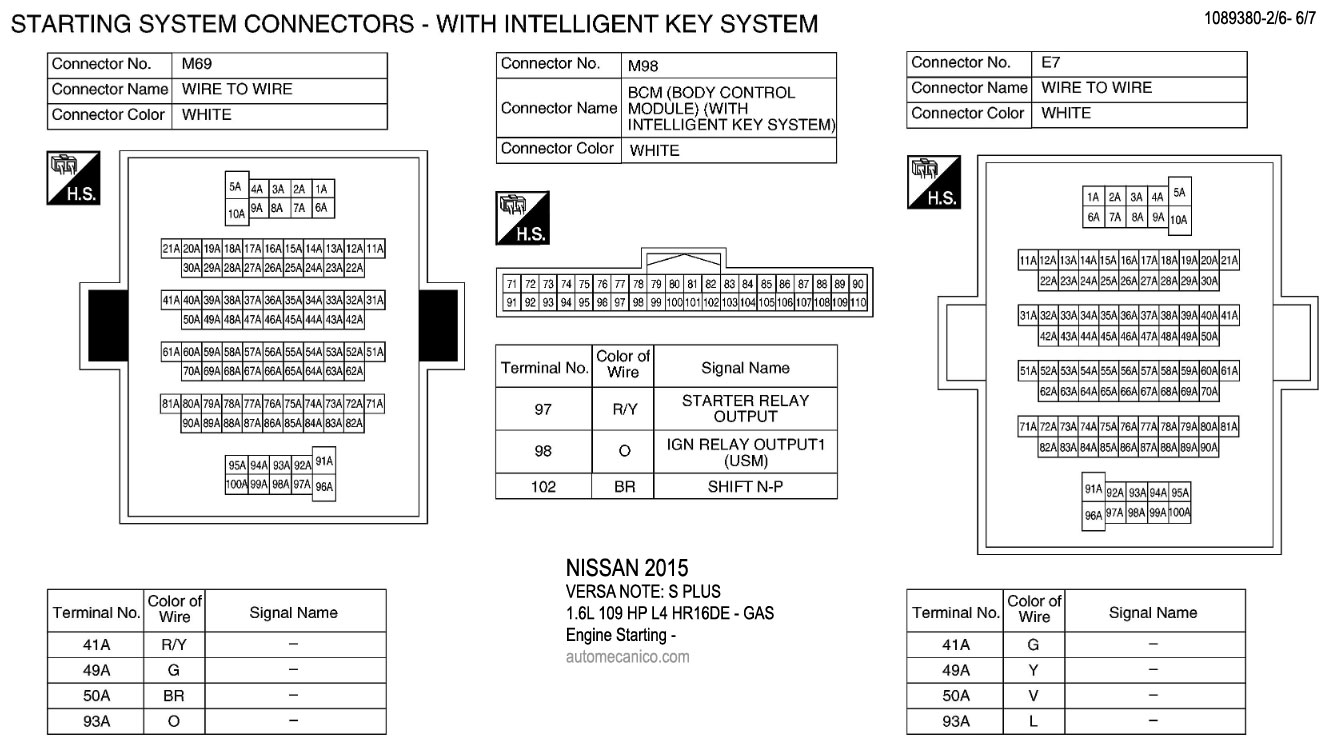

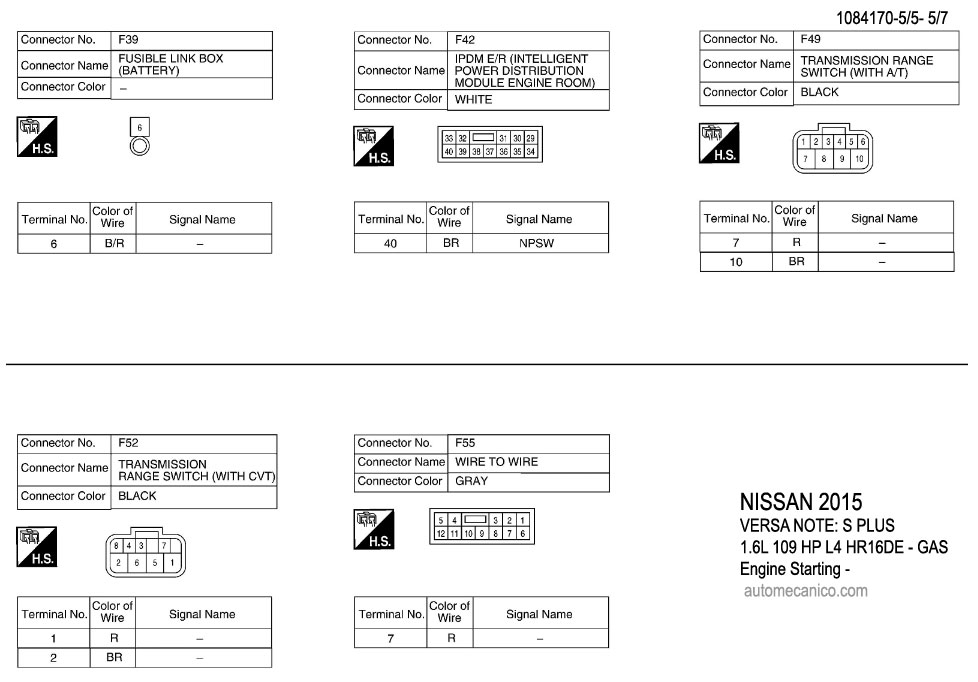

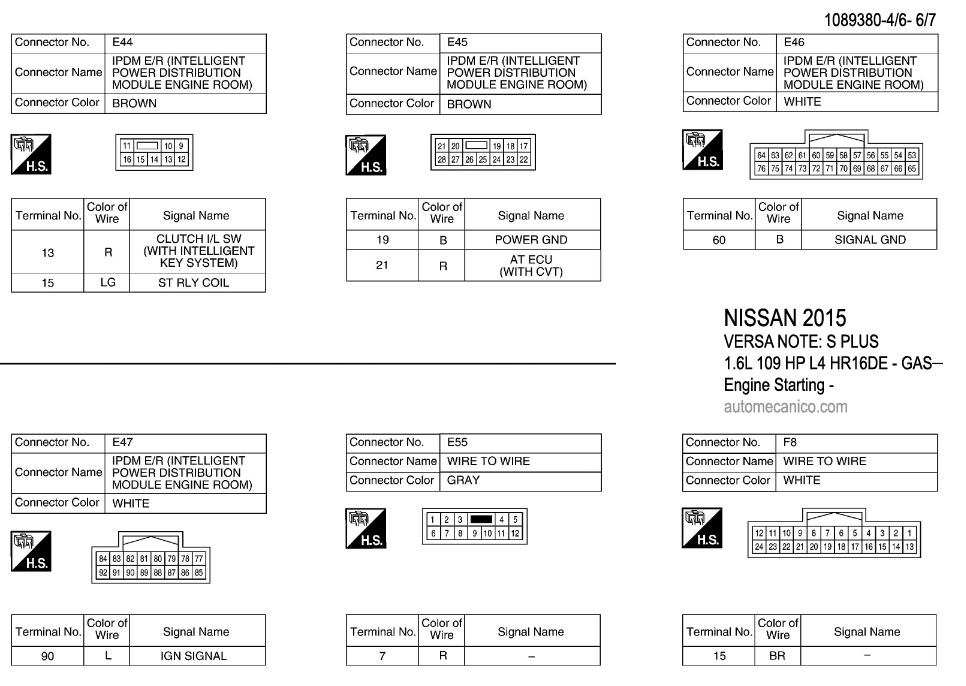

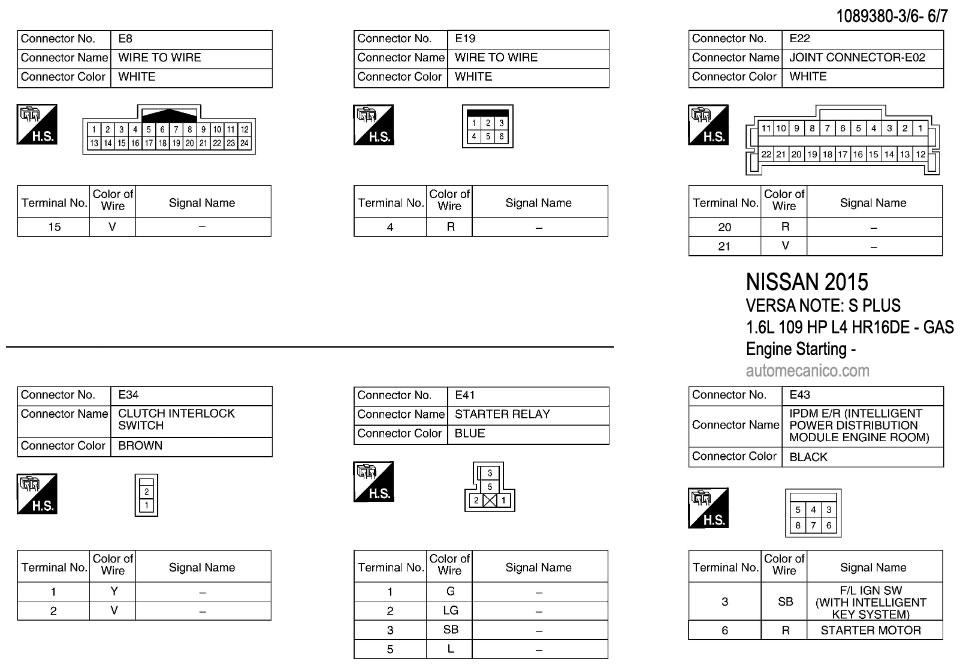

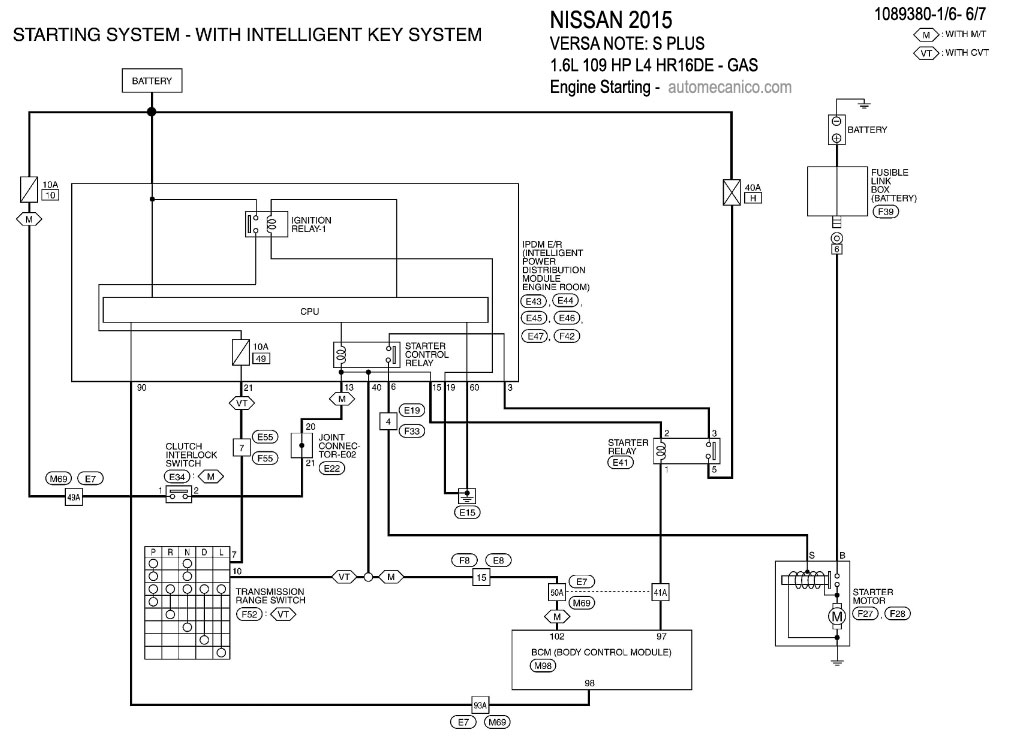

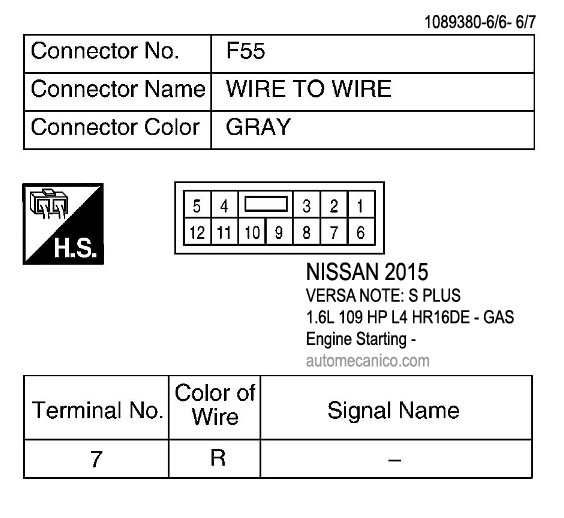

| 1.6L - 4 Cil. - HR16DE - With Intelligent Key - 1/6 - 6/7 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 2/6 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 3/6 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 4/6 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 5/6 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 6/6 | Engine Starting |

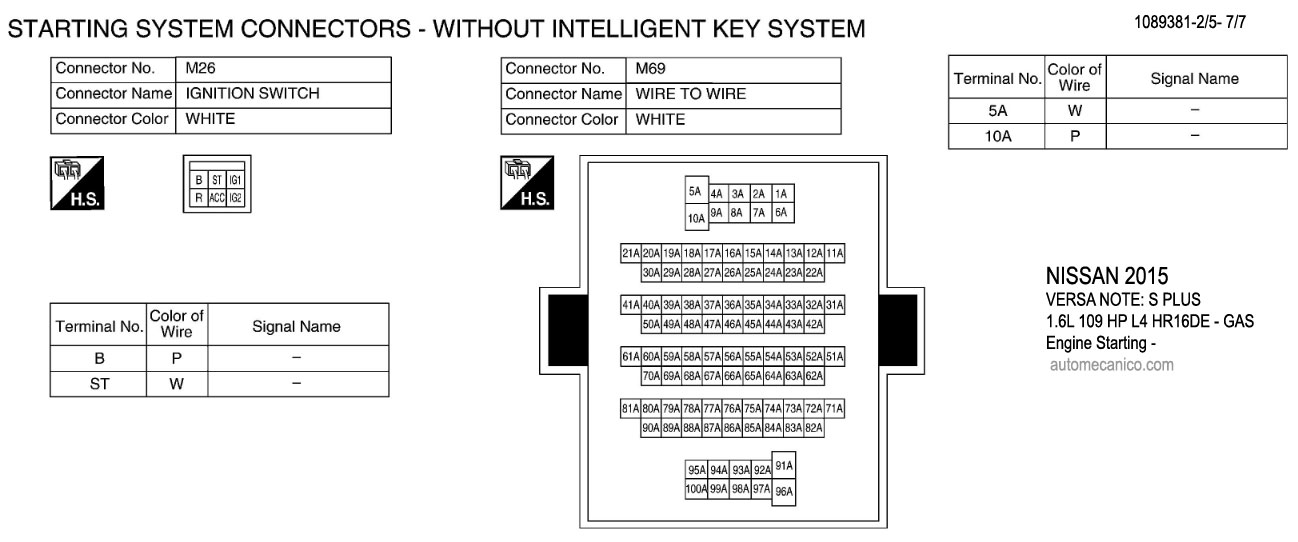

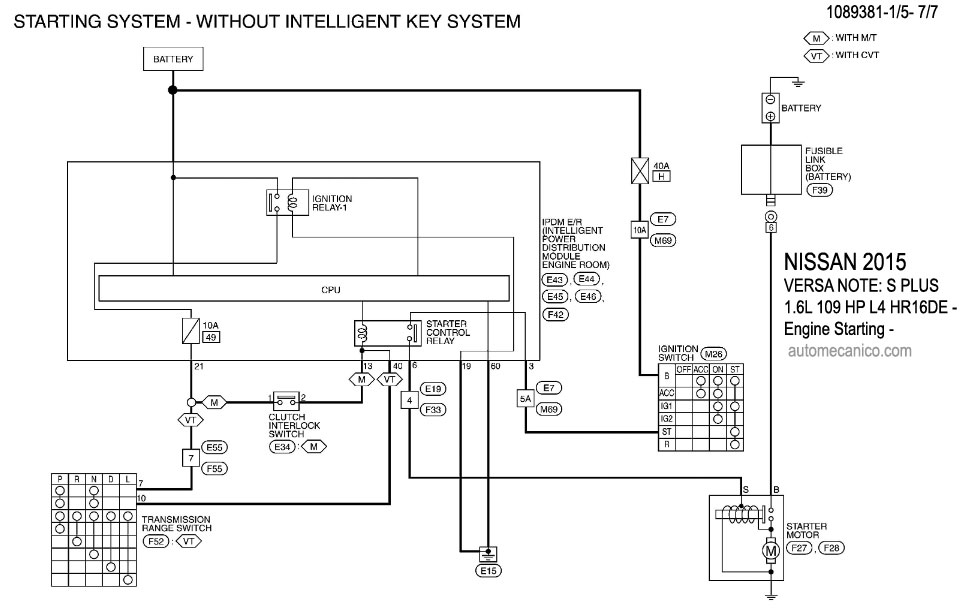

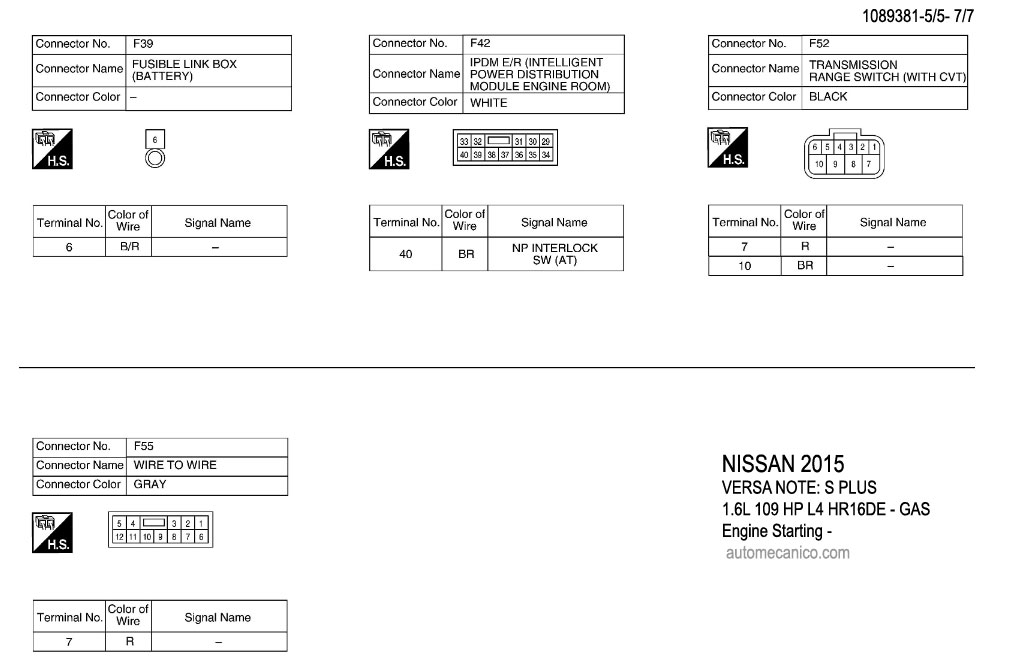

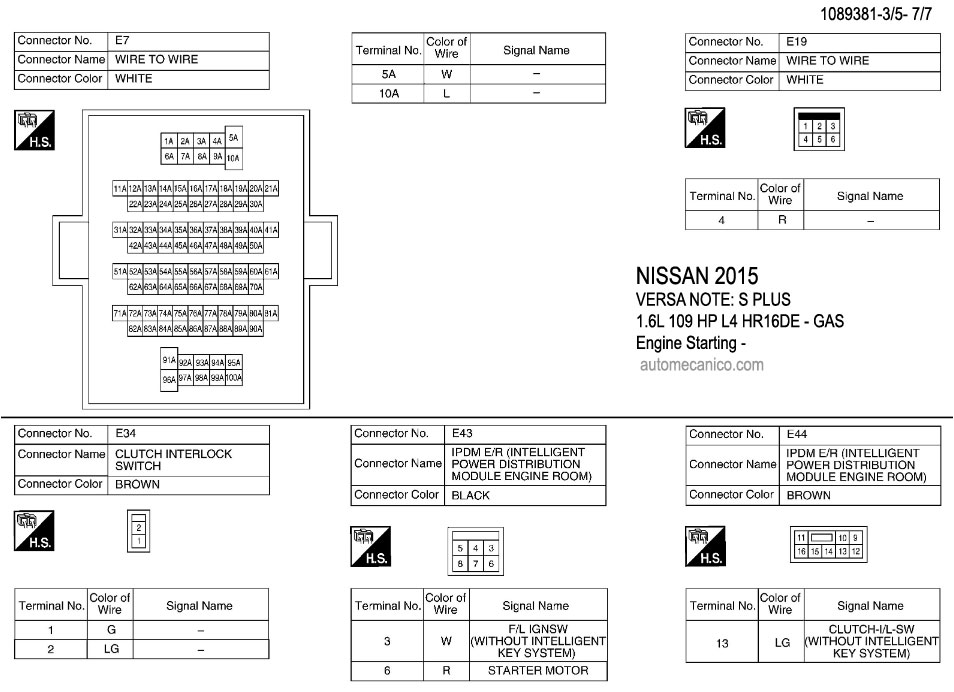

| 1.6L - 4 Cil. - HR16DE - With/Out Intelligent Key - 1/5 - 7/7 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 2/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 3/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 4/5 | Engine Starting |
| 1.6L - 4 Cil. - HR16DE - 5/5 | Engine Starting |
| Volver al indice NISSAN 2015 |
