Diagramas NISSAN : Engine Starting: - Esquemas - Graphics 2015 - |
| Diagrama - Arrancador / Bateria y conexiones . Vehiculos
NISSAN 2015 En estos diagramas se describen los circuitos que conectan y activan el funcionamiento del Arrancador [Starter, motor de arranque] |
 |
| Los Diagramas, listados abajo, se refieren unicamente al Circuito electrico que involucra: Arrancador [starter] - NISSAN 2015 - Arrancador = Starter, Motor de arranque - |
| PATHFINDER: Platinum, S, SL, SV | |

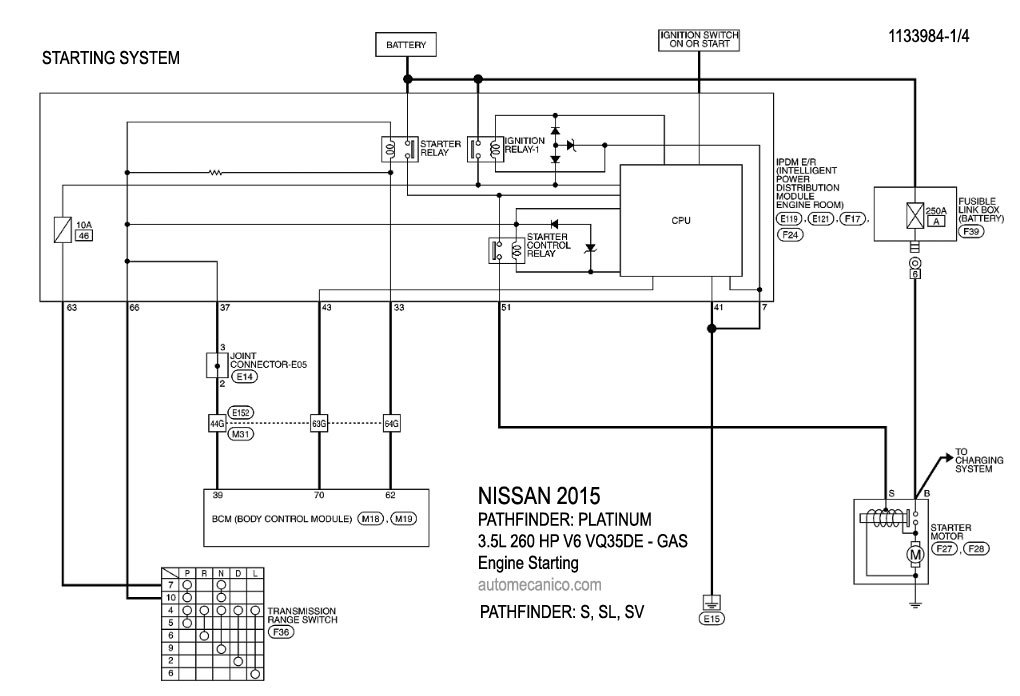

| 3.5L - V6 - VQ35DE - 1/4 | Engine Starting |

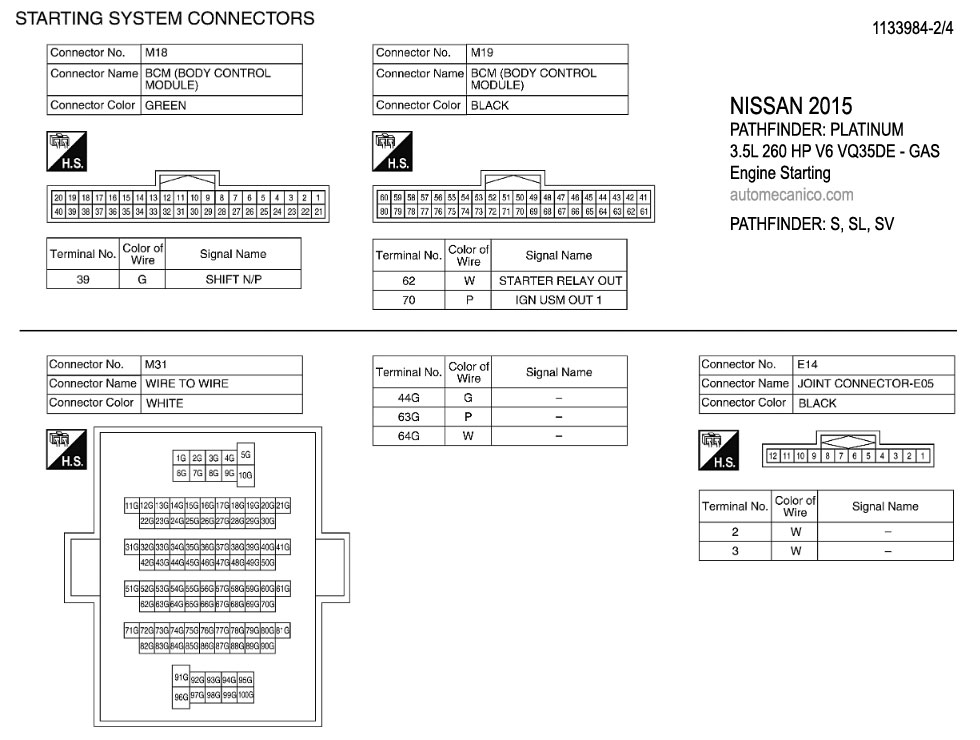

| 3.5L - V6 - VQ35DE - 2/4 | Engine Starting |

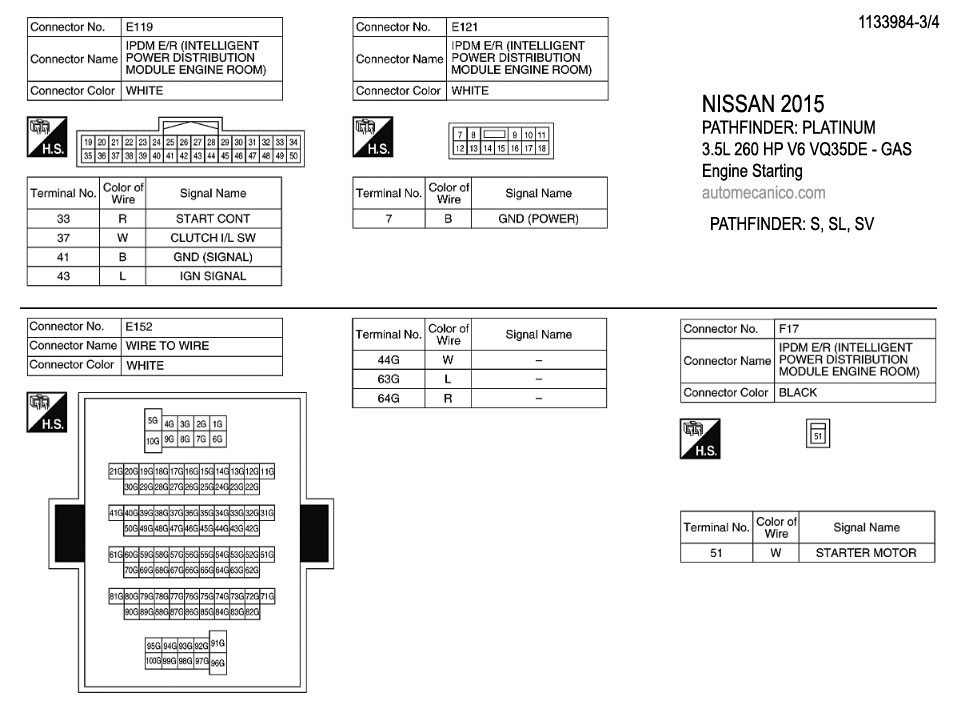

| 3.5L - V6 - VQ35DE - 3/4 | Engine Starting |

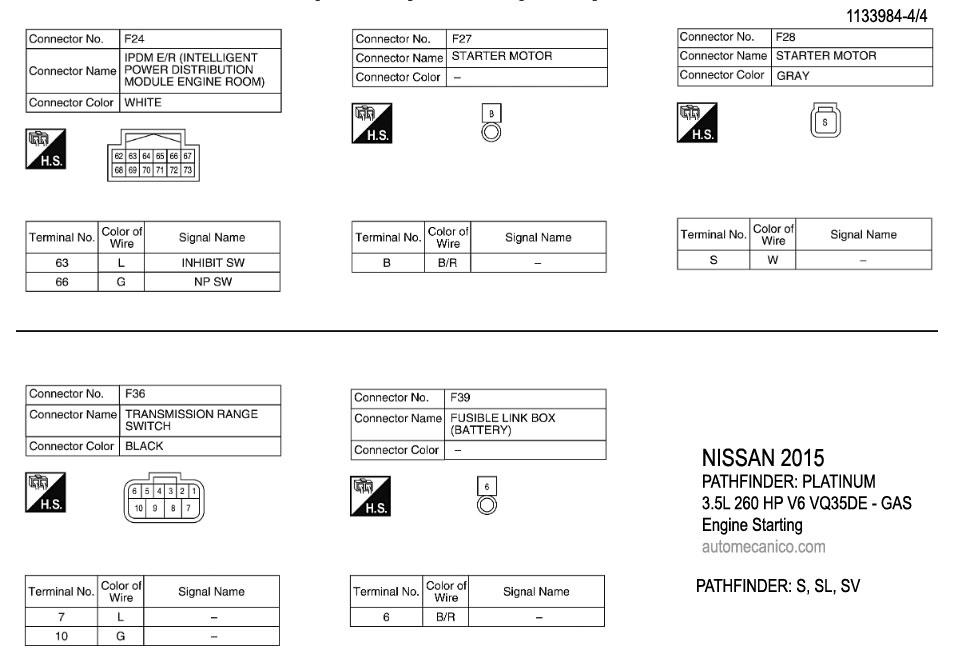

| 3.5L - V6 - VQ35DE - 4/4 | Engine Starting |
| QUEST: Platinum, S, SL, SV | |

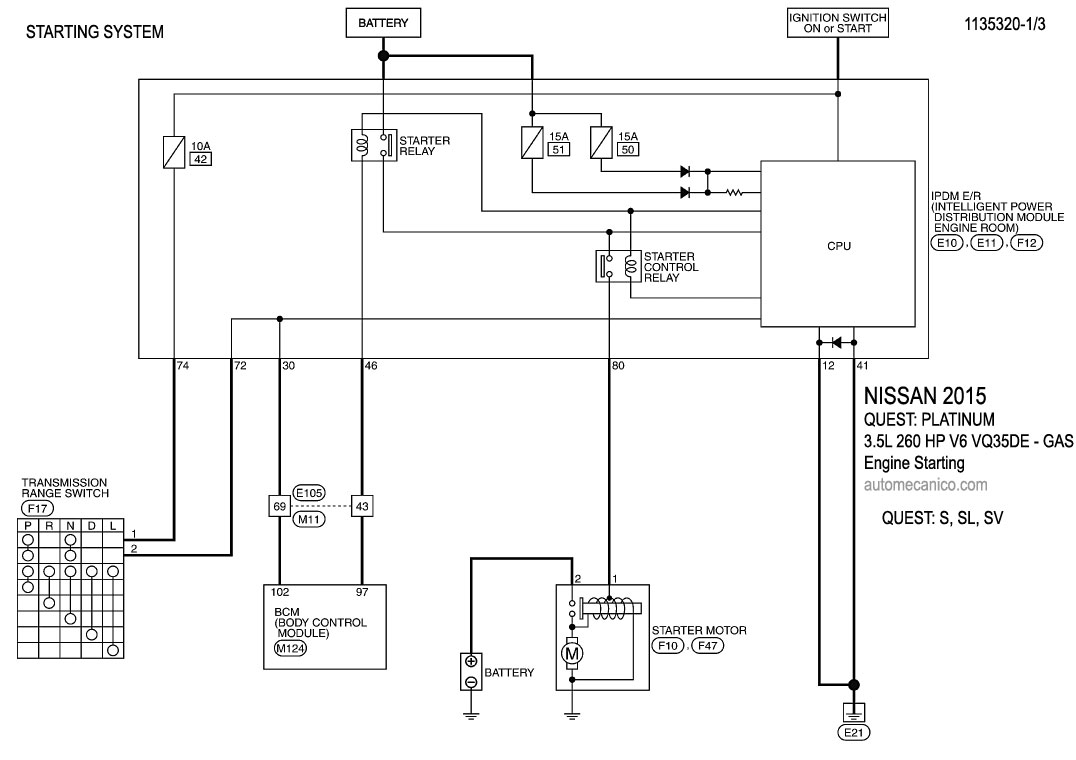

| 3.5L - V6 - VQ35DE - 1/3 | Engine Starting |

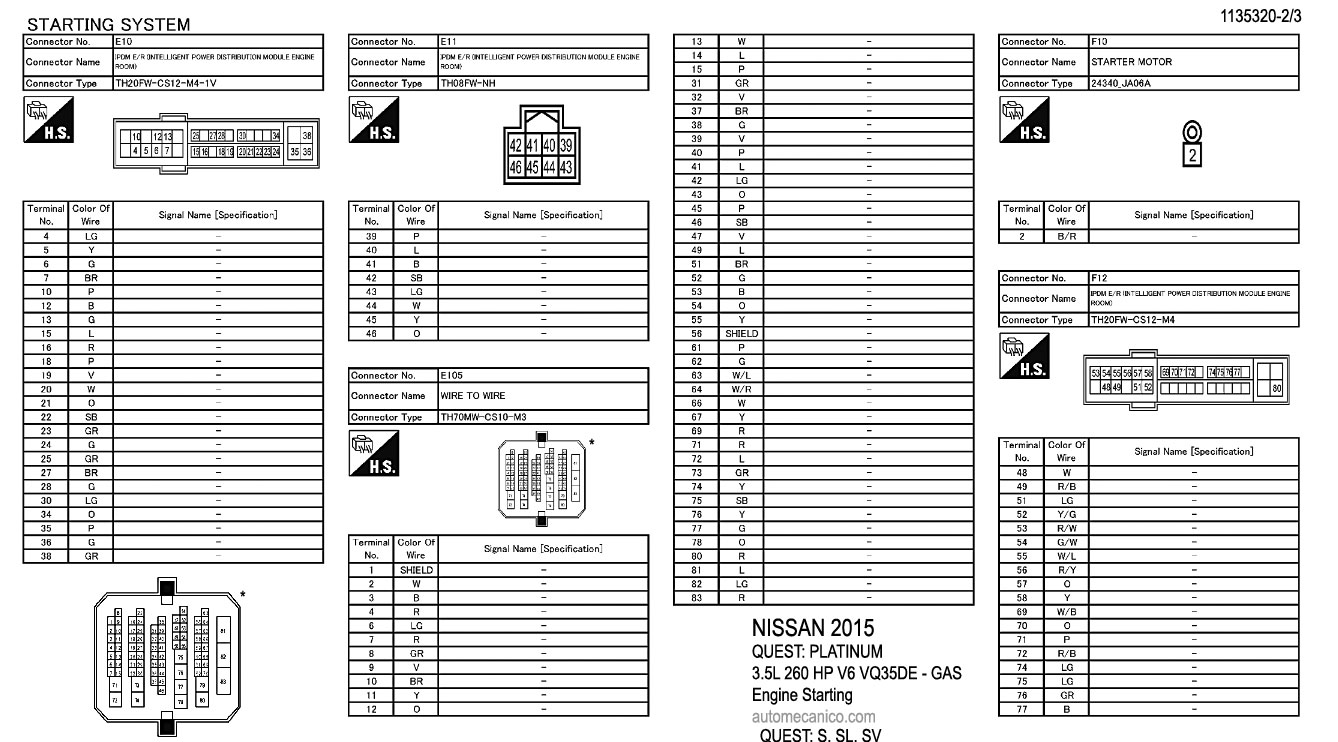

| 3.5L - V6 - VQ35DE - 2/3 | Engine Starting |

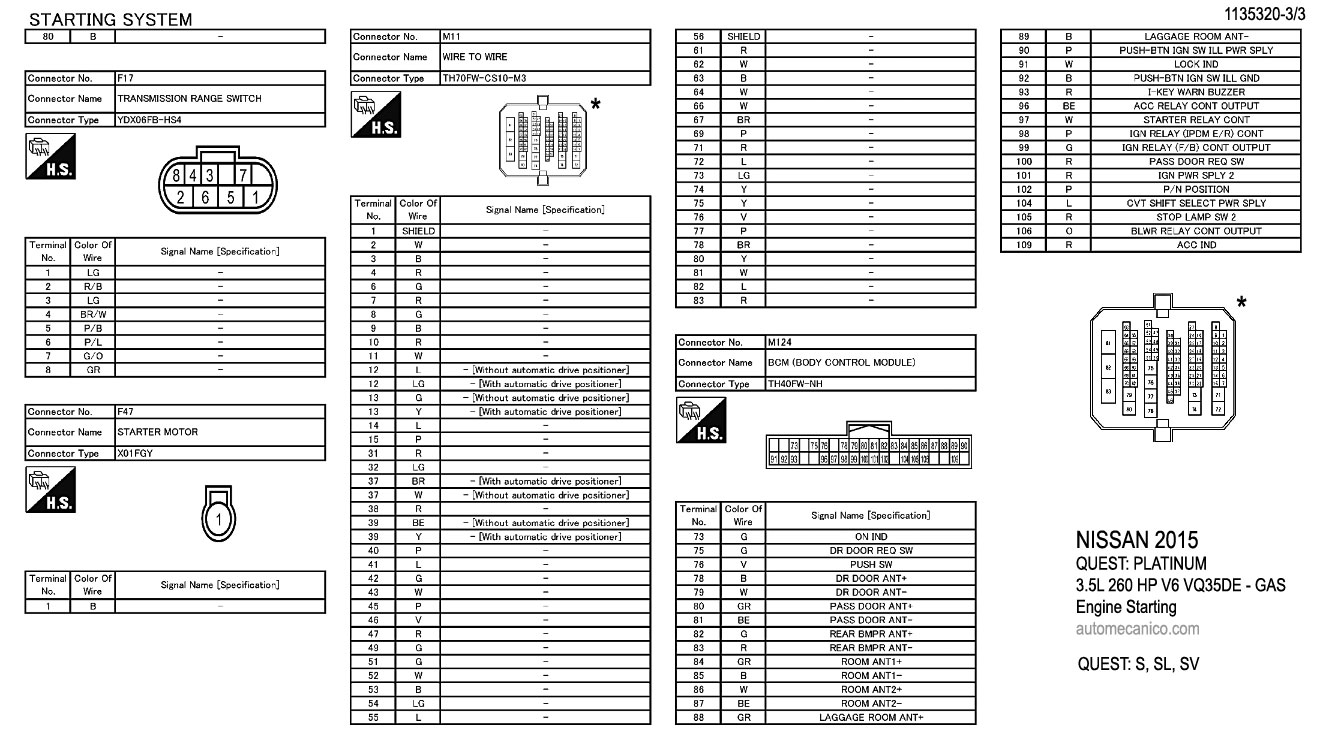

| 3.5L - V6 - VQ35DE - 3/3 | Engine Starting |
| ROGUE: S, SL, SV | |

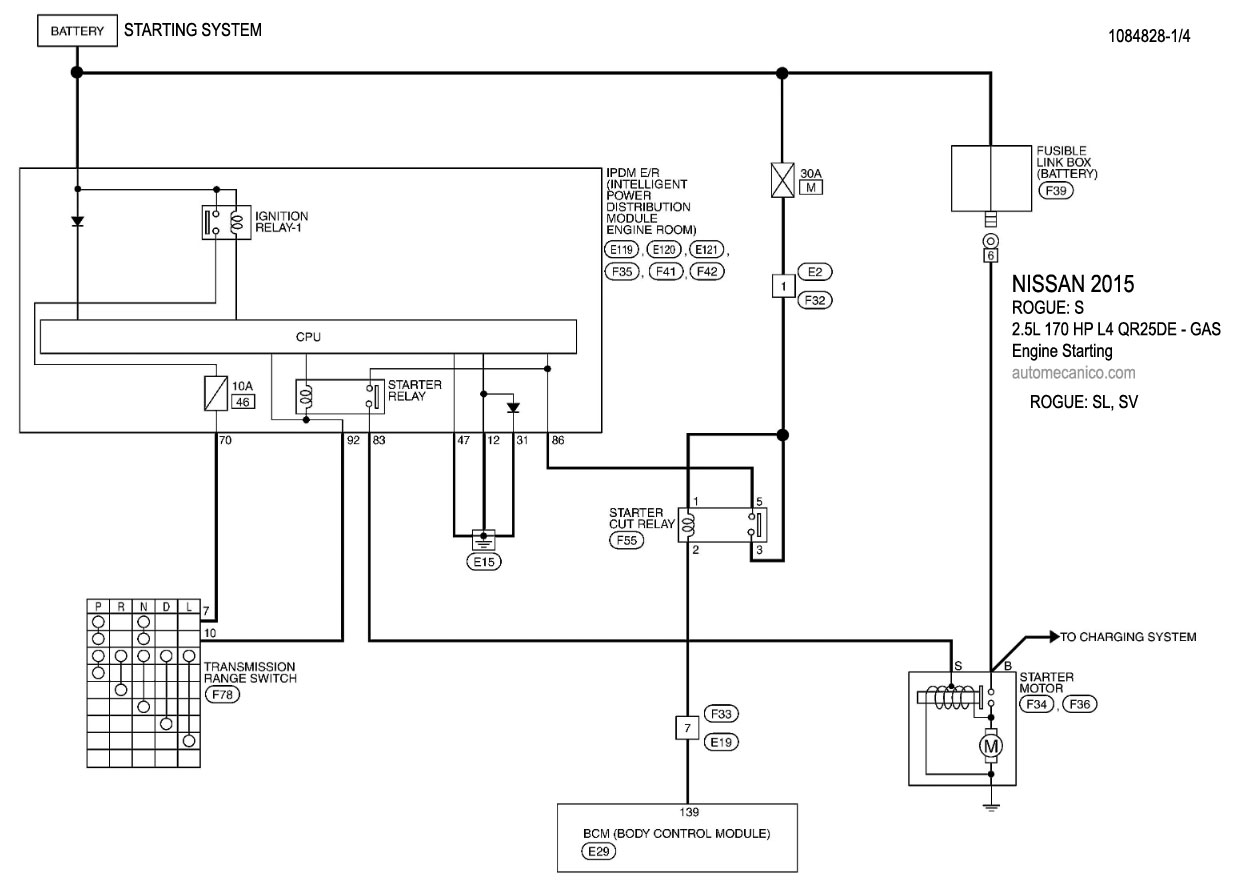

| 2.5L - 4 Cil. QR25DE - 1/4 | Engine Starting |

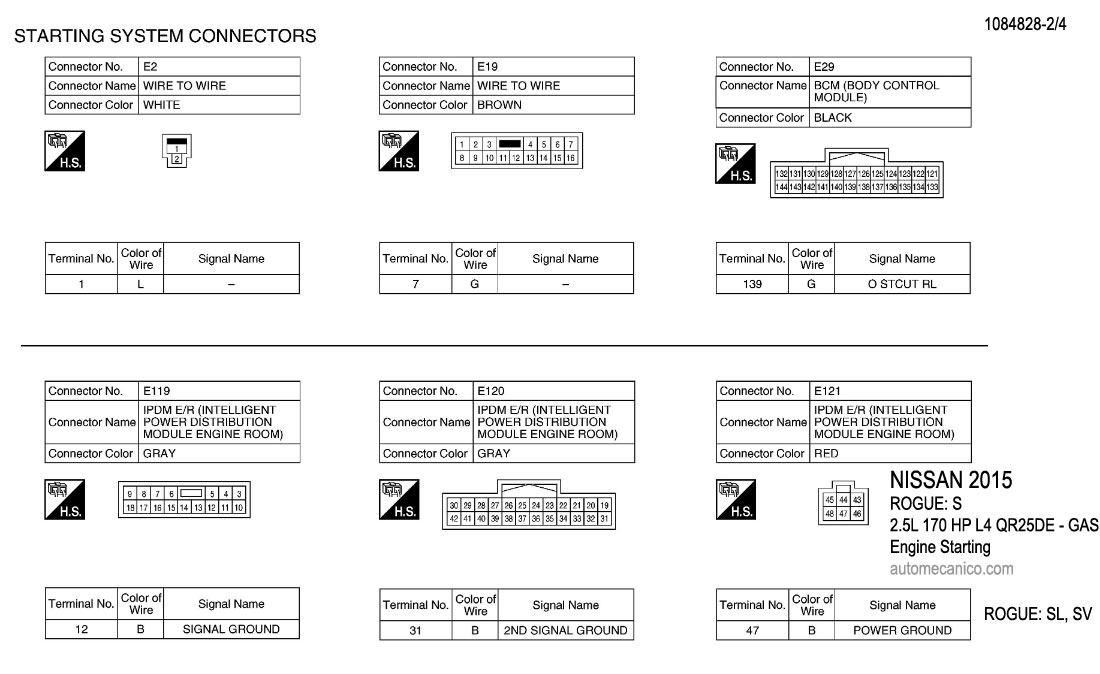

| 2.5L - 4 Cil. QR25DE - 2/4 | Engine Starting |

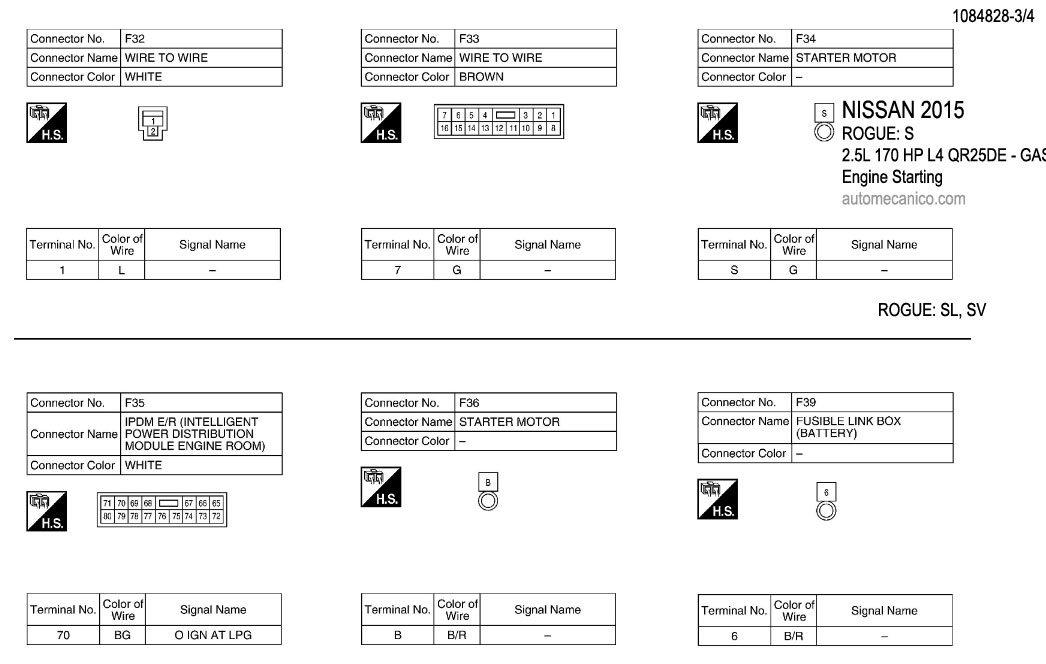

| 2.5L - 4 Cil. QR25DE - 3/4 | Engine Starting |

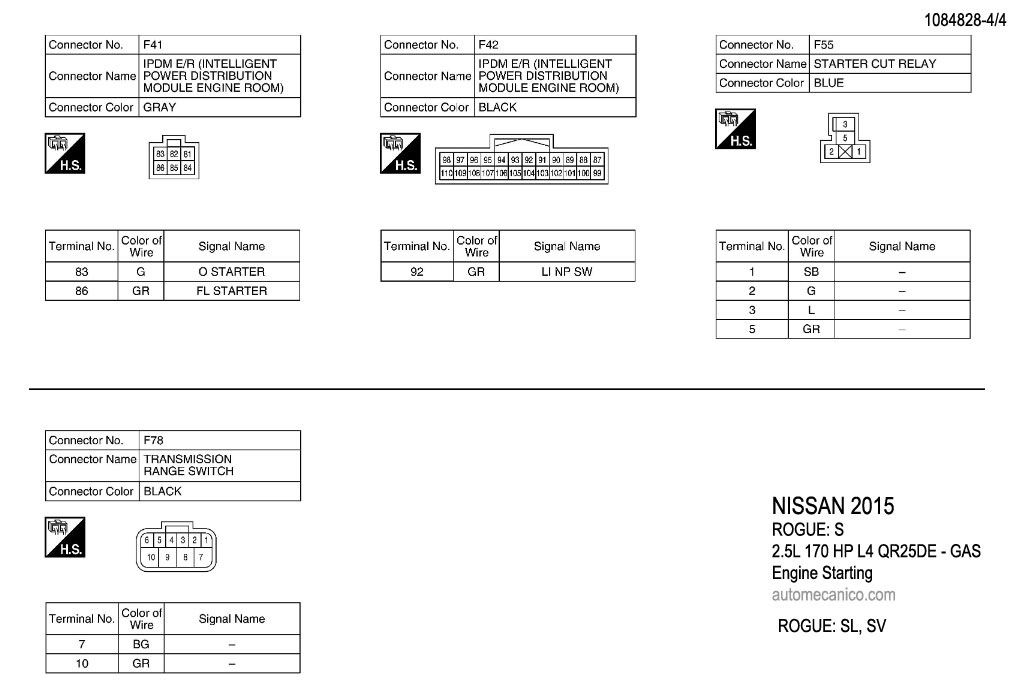

| 2.5L - 4 Cil. QR25DE - 4/4 | Engine Starting |
| ROGUE SELECT: S | |

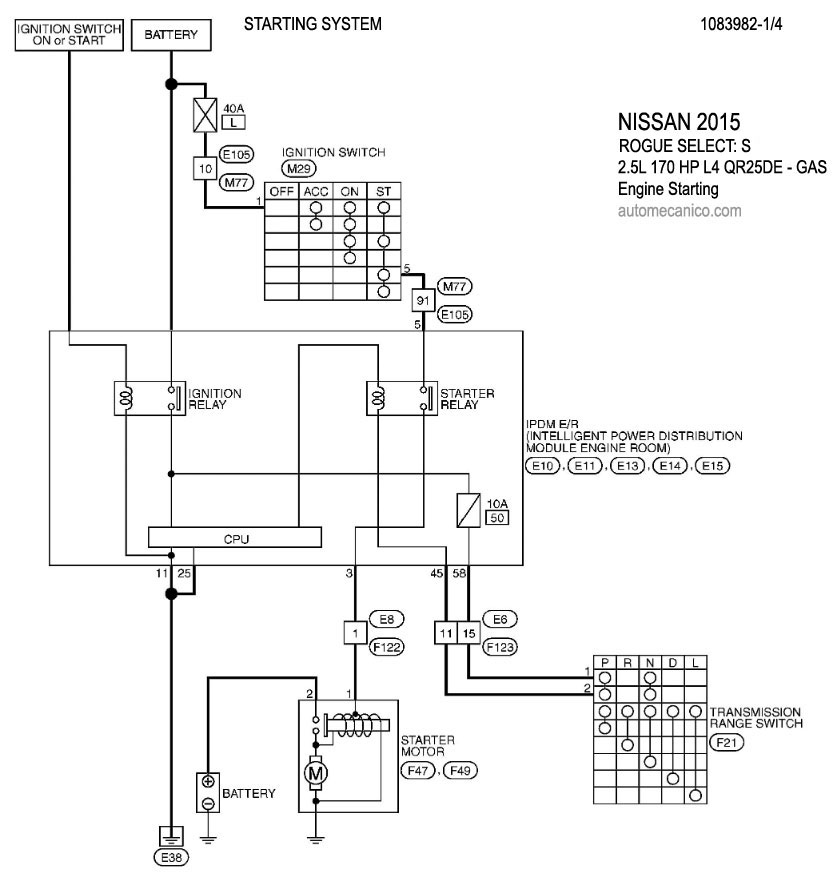

| 2.5L - 4 Cil. QR25DE - 1/4 | Engine Starting |

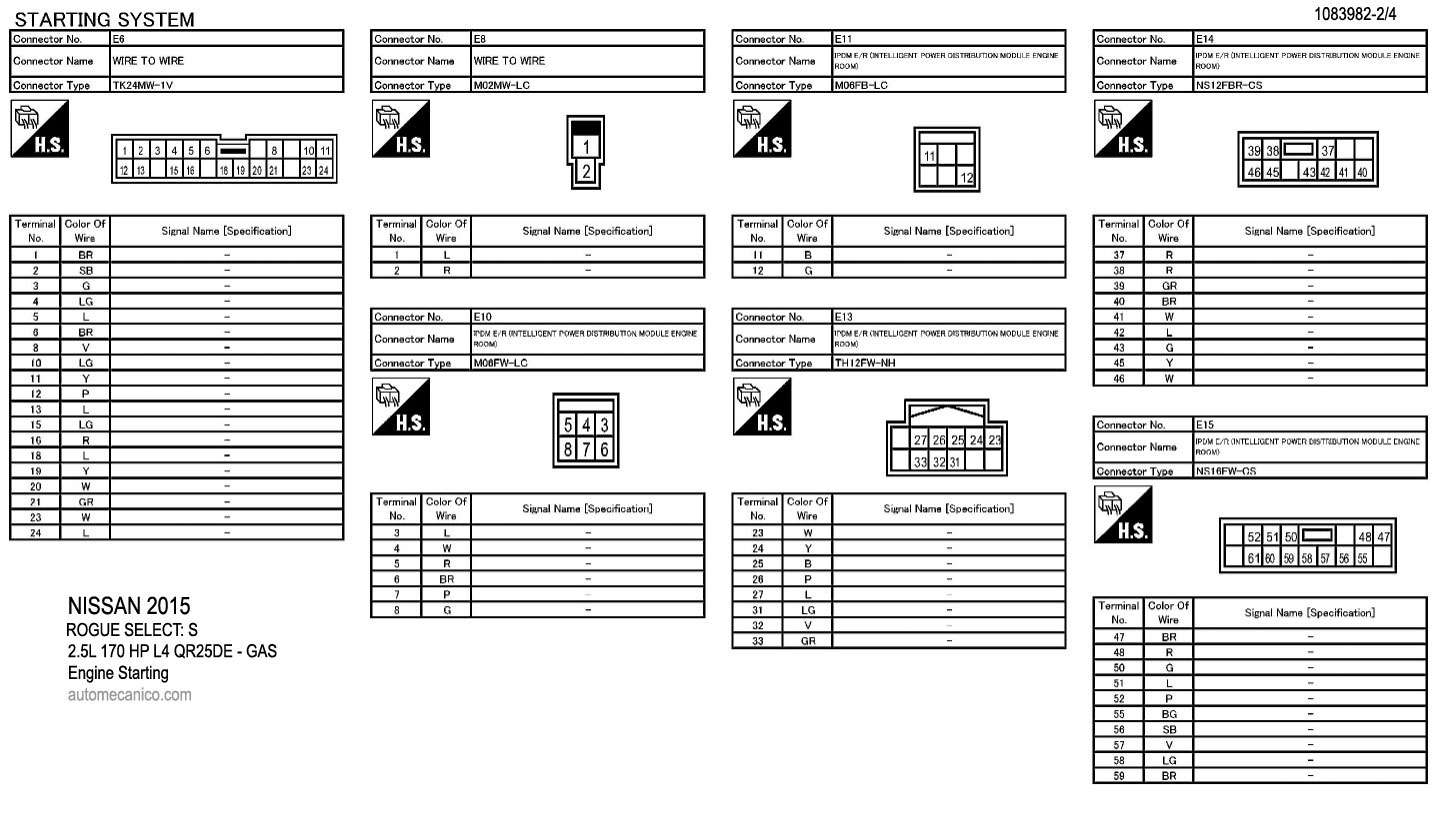

| 2.5L - 4 Cil. QR25DE - 2/4 | Engine Starting |

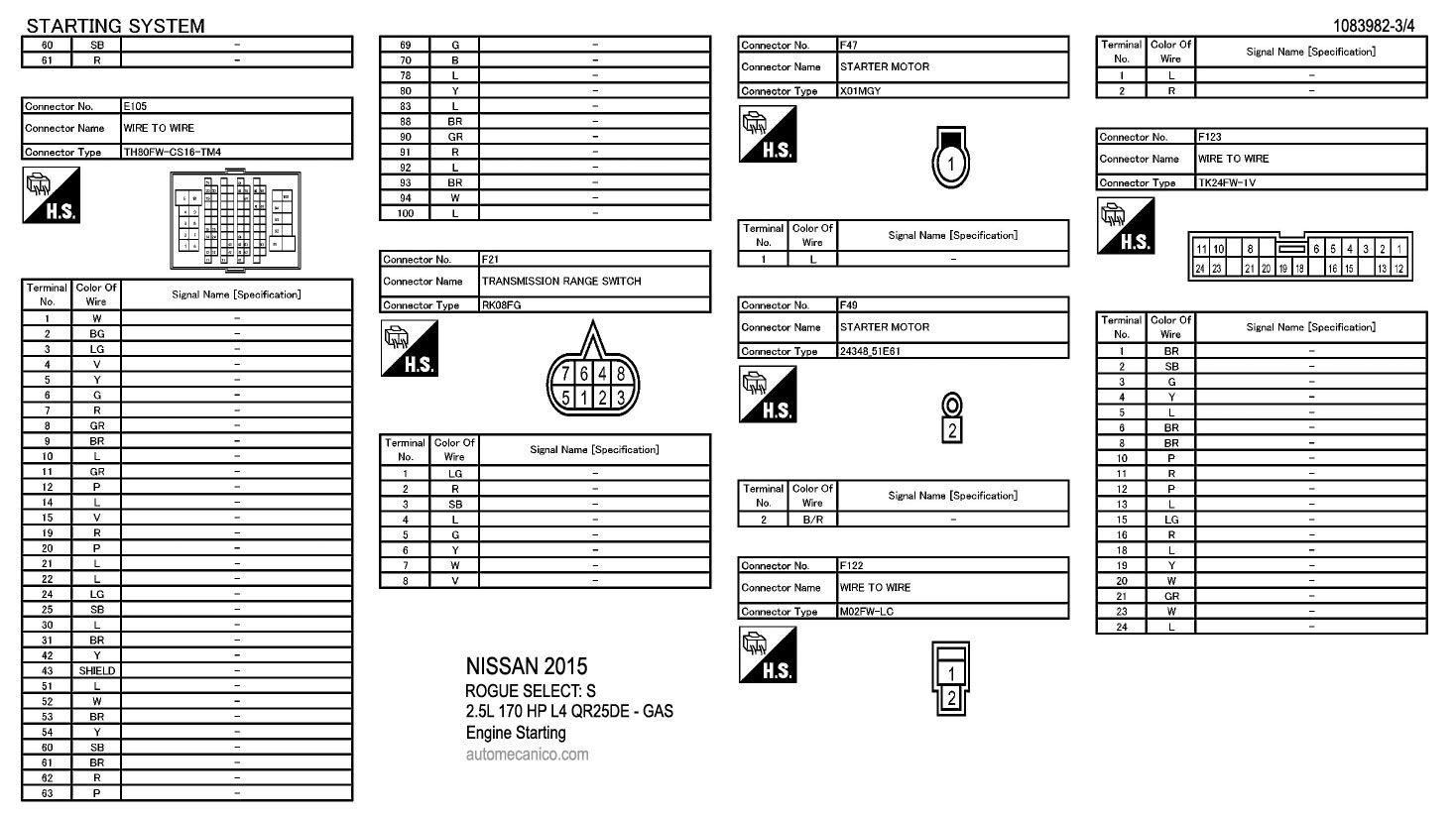

| 2.5L - 4 Cil. QR25DE - 3/4 | Engine Starting |

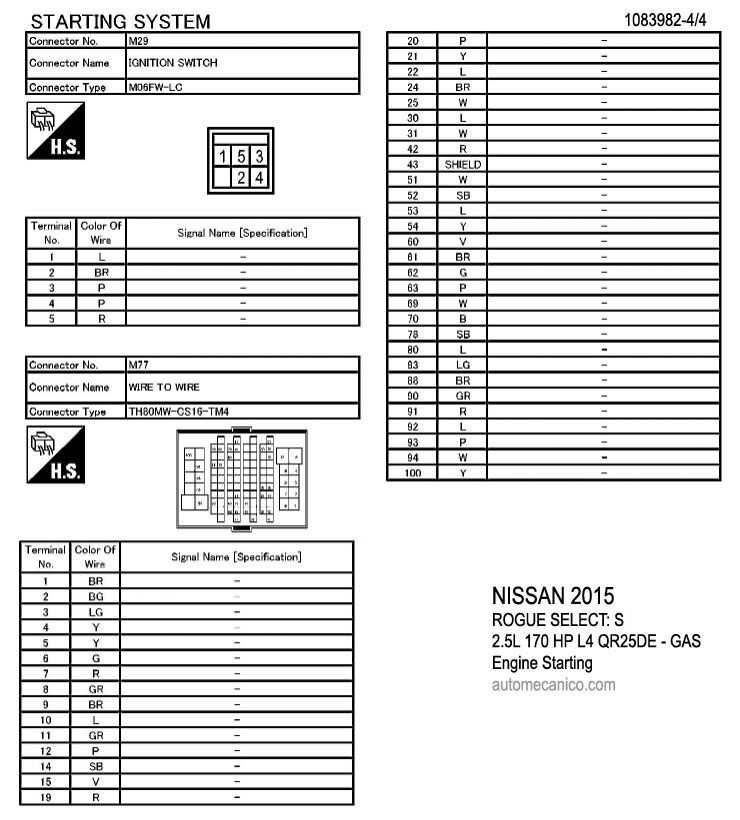

| 2.5L - 4 Cil. QR25DE - 4/4 | Engine Starting |
