DIAGRAMAS - CIRCUITO DE ARRANQUE DEL MOTOR - JEEP 2015 - Mecanica Automotriz - INDICE

Diagramas JEEP : Engine Starting: - Esquemas - Graphics 2015 -

Diagrama - Arrancador / Bateria y conexiones . Vehiculos JEEP 2015

En estos diagramas se describen los circuitos que conectan y activan el funcionamiento del Arrancador [Starter, motor de arranque]
Arrancador - Diagramas - Esquemas - Graphics
Los Diagramas, listados abajo, se refieren unicamente al Circuito electrico que involucra: Arrancador [starter] - JEEP 2015 - Arrancador = Starter, Motor de arranque -
CHEROKEE: Latitude, Limited North, Sport, Trailhawk
2.4L - 4 Cil. -  1/1 Engine Starting
CHEROKEE: Latitude, Limited, North, TrailHawk
3.2L - V6 -  1/1 Engine Starting

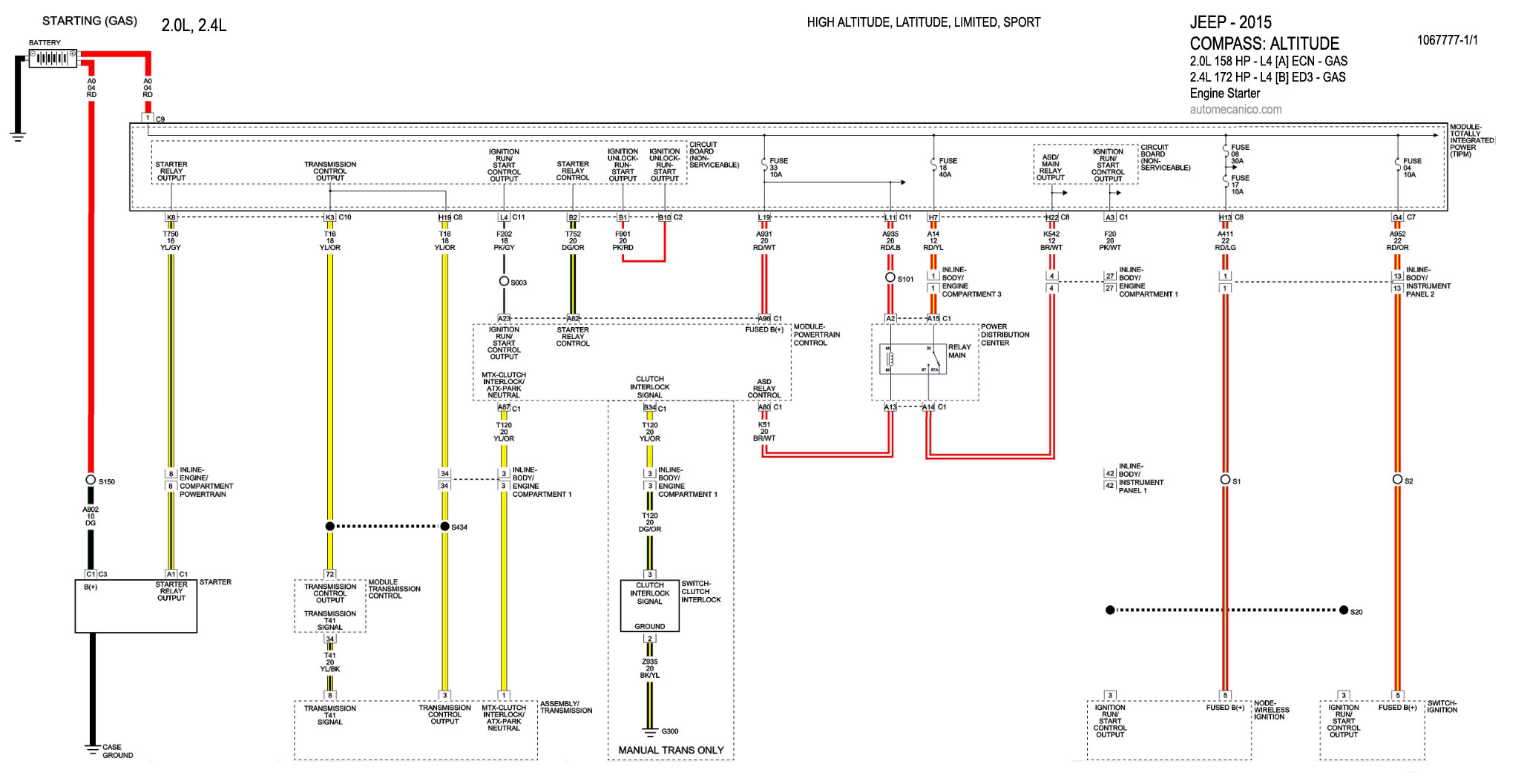

COMPASS: Altitude, Latitude, Limited, Sport
2.0L - 4 Cil. -  1/1 Engine Starting
2.4L - 4 Cil. -  1/1 Engine Starting
GRAND CHEROKEE: Limited, Overland, Summit - Diesel
3.0L - V6 -  Diesel - 1/1 Engine Starting

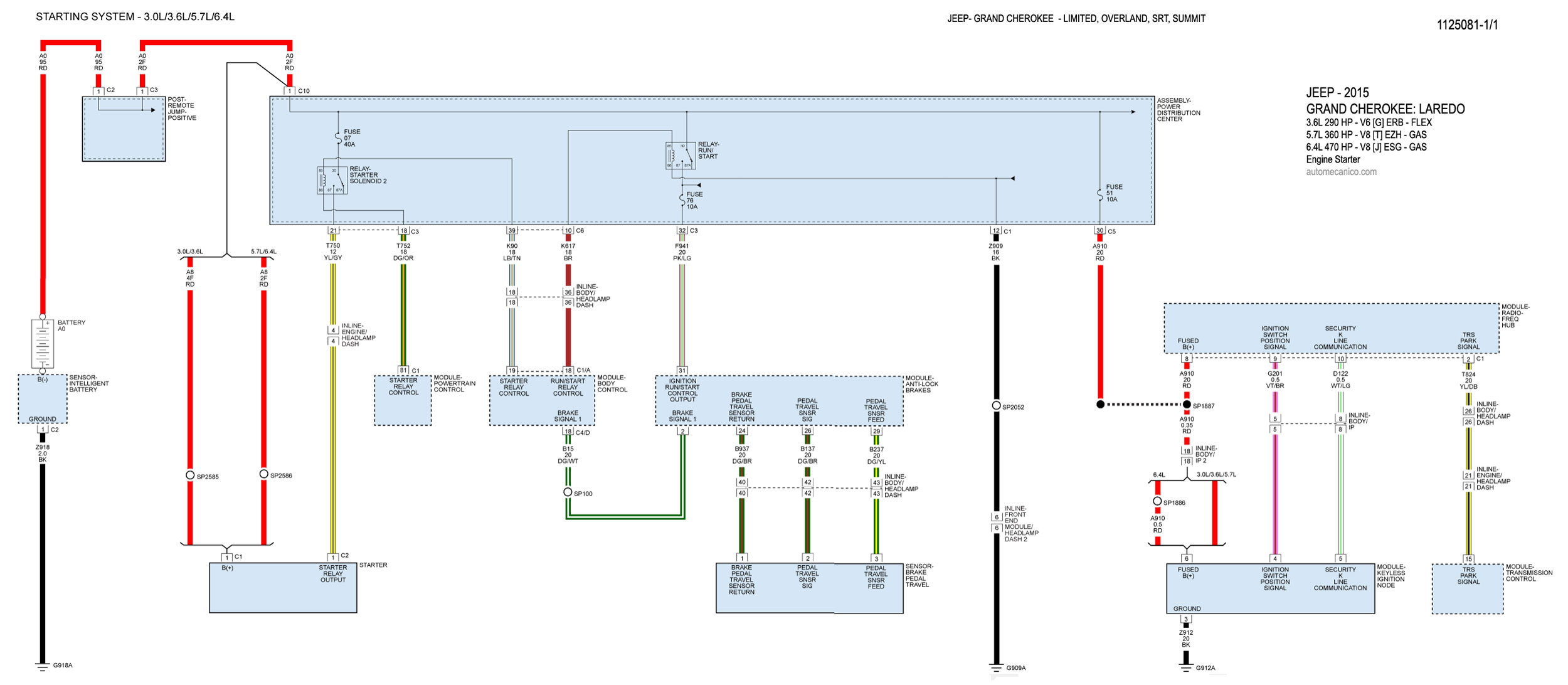

GRAND CHEROKEE: Laredo, Limited, Overland, Srt, Summit
3.6L - V6 -  1/1 Engine Starting
5.7L - V8 -  1/1 Engine Starting
6.4L - V8 -  1/1 Engine Starting

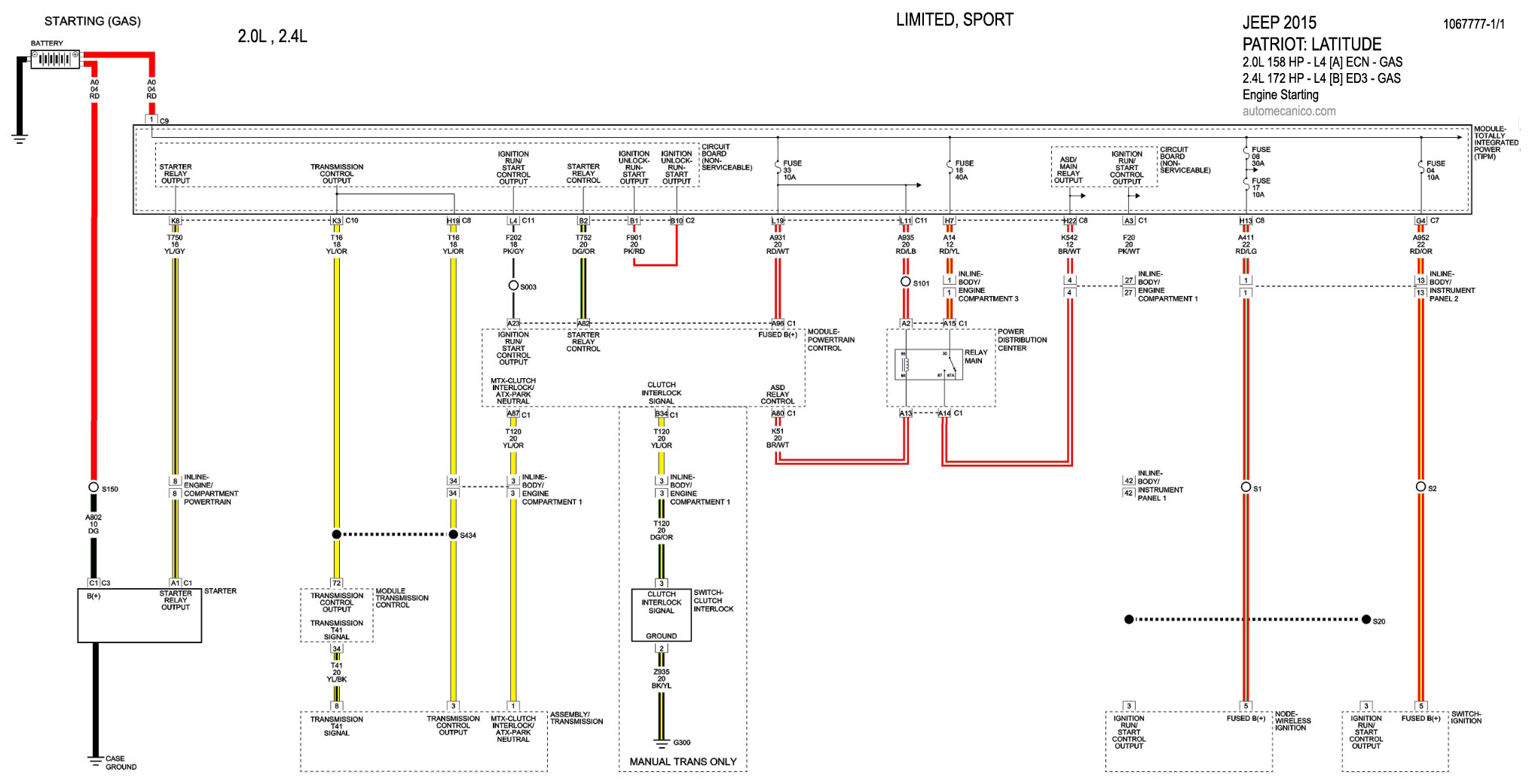

PATRIOT: Latitude, Limited, Sport
2.0L - 4 Cil. -  1/1 Engine Starting
2.4L - 4 Cil. -  1/1 Engine Starting
RENEGADE: Latitude, Sport
1.4L - 4 Cil. -  1/2 Engine Starting
1.4L - 4 Cil. -  2/2 Engine Starting
RENEGADE: Latitude, Limited, Sport, Trailhawk
2.4L - 4 Cil. -  1/2 Engine Starting
2.4L - 4 Cil. -  2/2 Engine Starting
WRANGLER: Rubicon, Sahara, Sport, Unlimited
3.6L - V6 -  1/1 Engine Starting
