| Diagrama - Arrancador / Bateria y conexiones . Vehiculos
FORD 2015 En estos diagramas se describen los circuitos que conectan y activan el funcionamiento del Arrancador [Starter, motor de arranque] |
 |
| Los Diagramas, listados abajo, se refieren unicamente al Circuito electrico que involucra: Arrancador [starter] - FORD 2015 - Arrancador = Starter, Motor de arranque - |
| C-MAX: ENERGI SEL - Hybrid | |

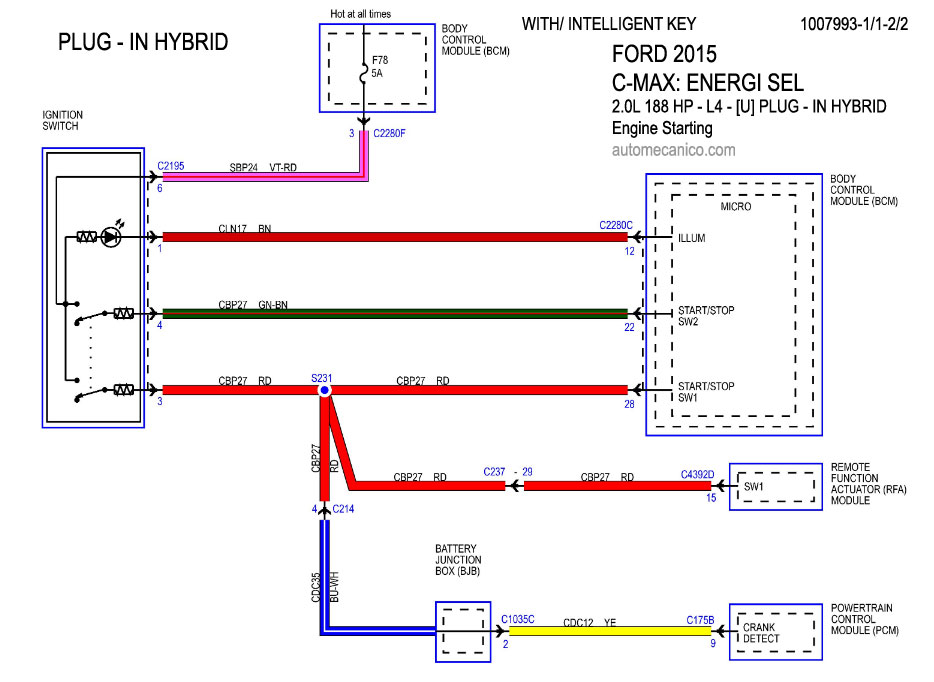

| 2.0L - 4 Cil. - Plug - In Hybrid - With/out Intelligent Key | Engine Starting |

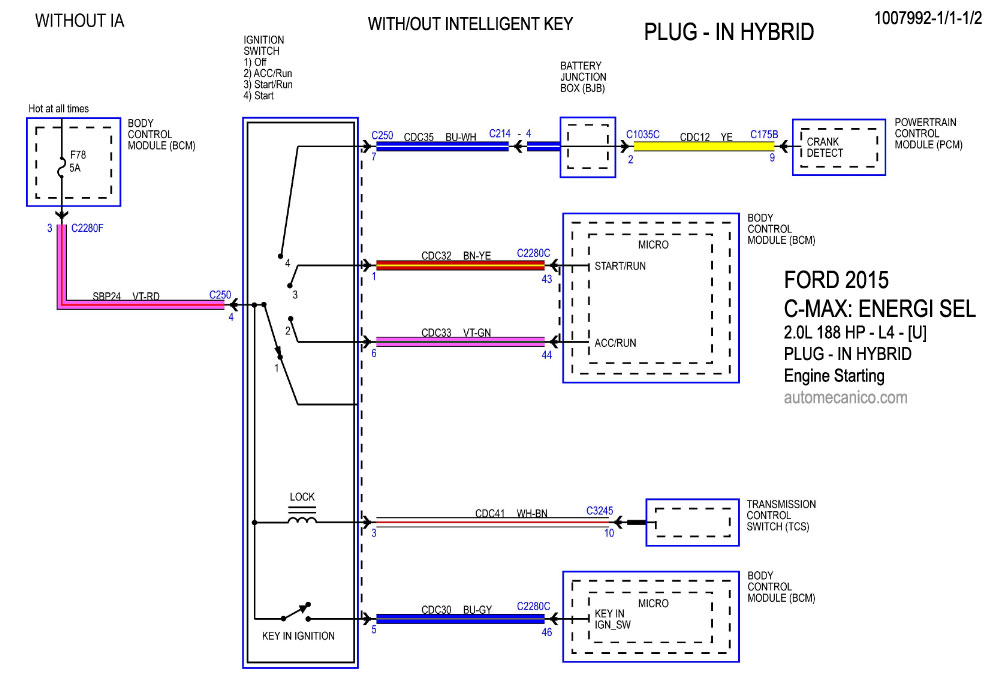

| 2.0L - 4 Cil. - Plug - In Hybrid - With Intelligent Key | Engine Starting |
| E-350, 450: Super Duty | |

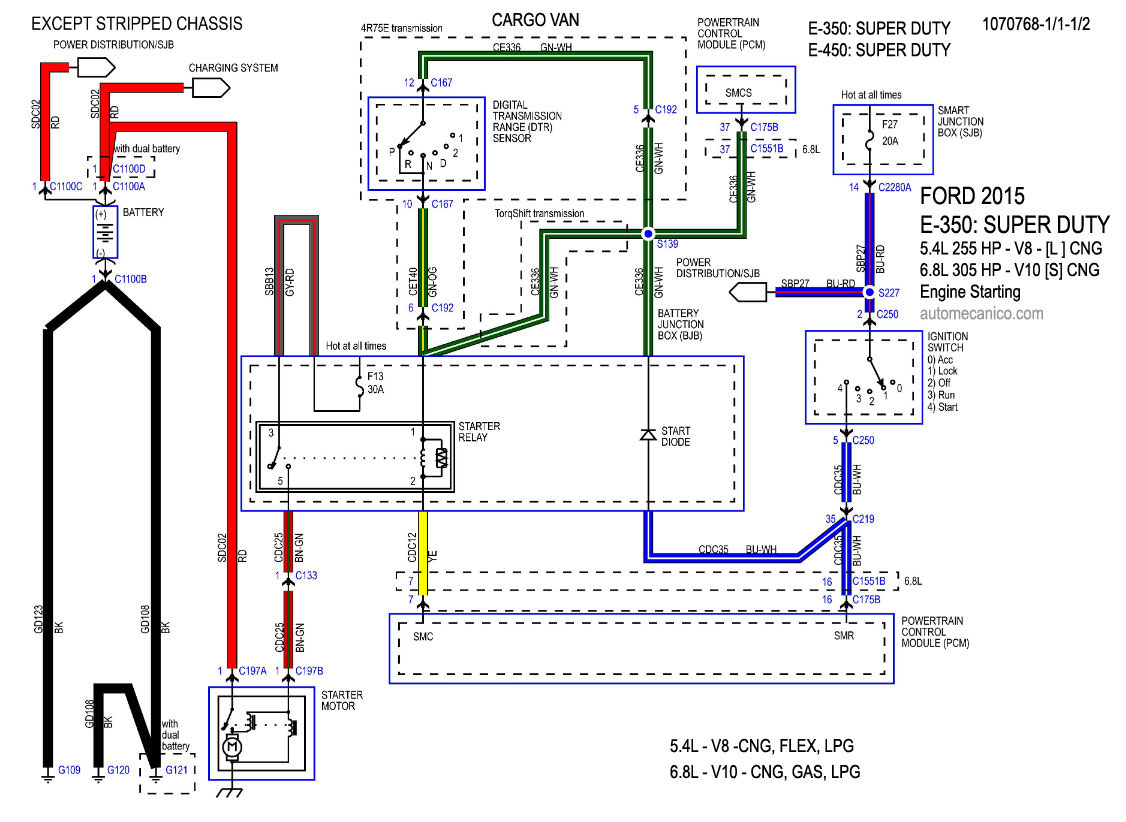

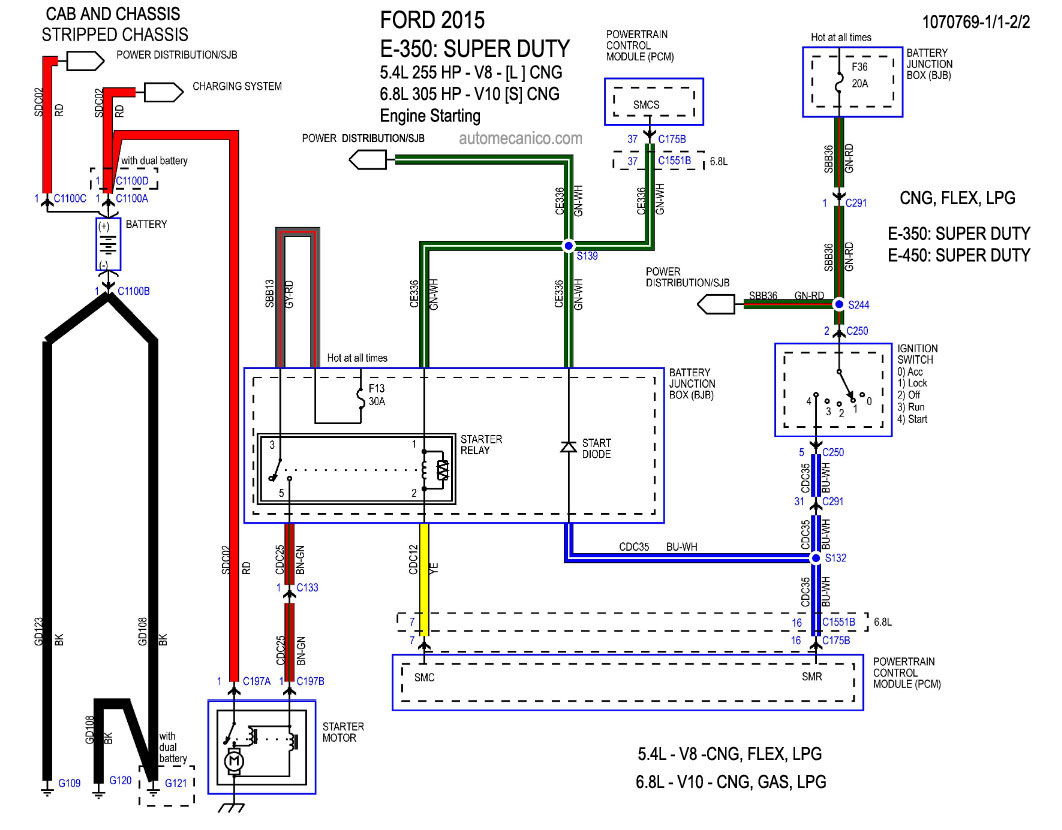

| 5.4L - V8 - Excep Stripped Chassis - 1/2 | Engine Starting |
| 5.4L - V8 - Cab And Chassis - 2/2 | Engine Starting |
| 6.8L - V10 - Excep Stripped Chassis - 1/2 | Engine Starting |
| 6.8L - V10 - Cab And Chassis - 2/2 | Engine Starting |
| EDGE: SE, SEL, Sport, Titanium | |

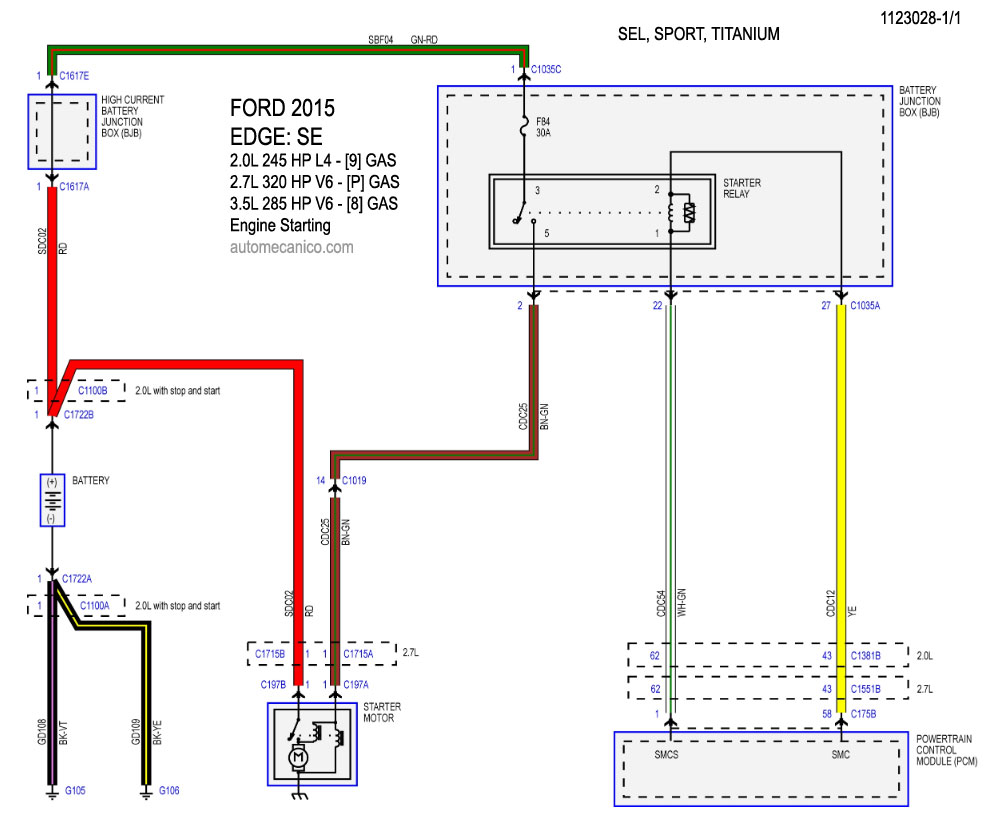

| 2.0L - 4 Cil. | Engine Starting |
| 2.7L- V6 | Engine Starting |
| 3.5L- V6 | Engine Starting |
| ESCAPE: SE, Titanium | |

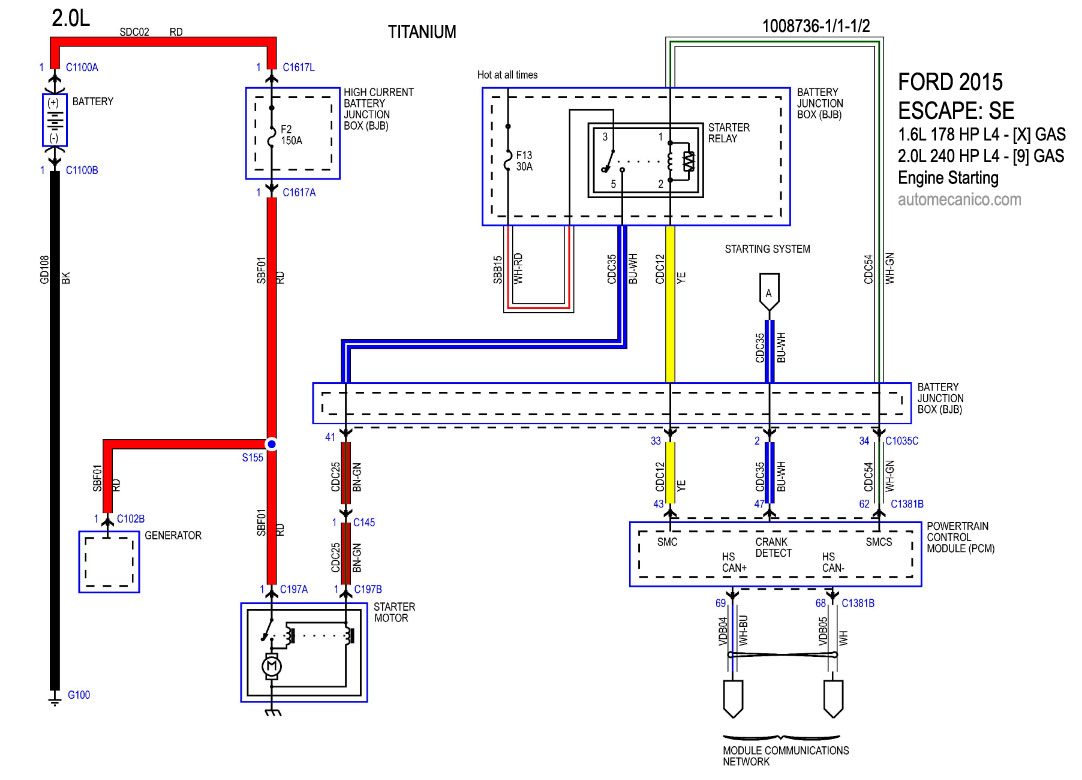

| 1.6L - 4 Cil. Starter -1/2 | Engine Starting |

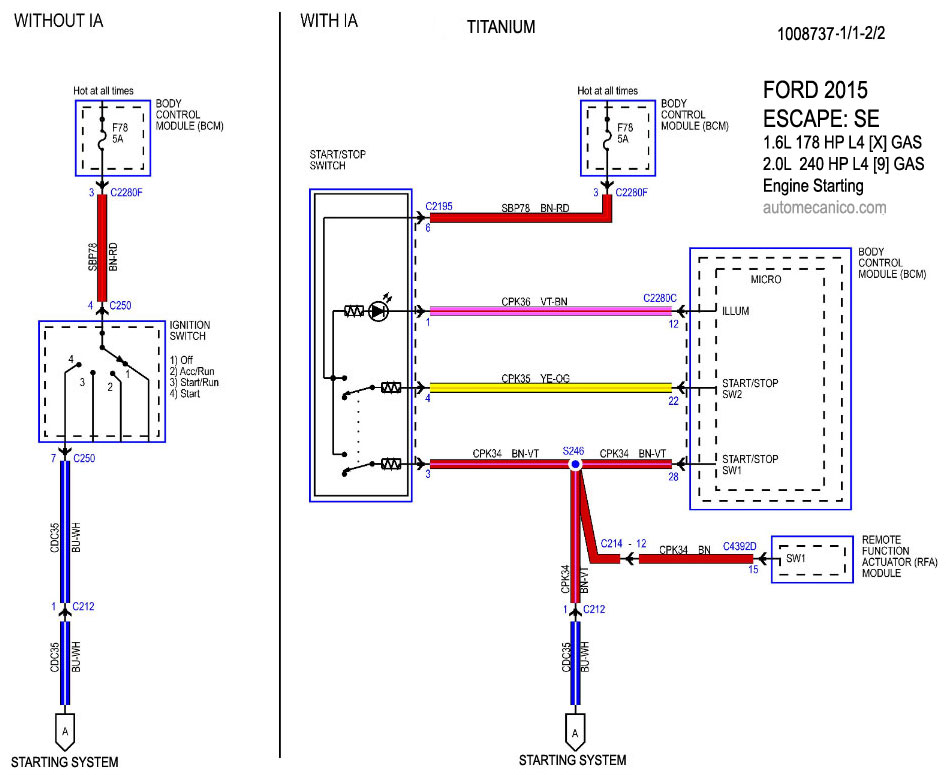

| 1.6L - 4 Cil. Intelligent Access System - 2/2 | Engine Starting |
| 2.0L - 4 Cil. Starter -1/2 | Engine Starting |
| 2.0L - 4 Cil. Intelligent Access System - 2/2 | Engine Starting |
| ESCAPE: S, Titanium, SE | |

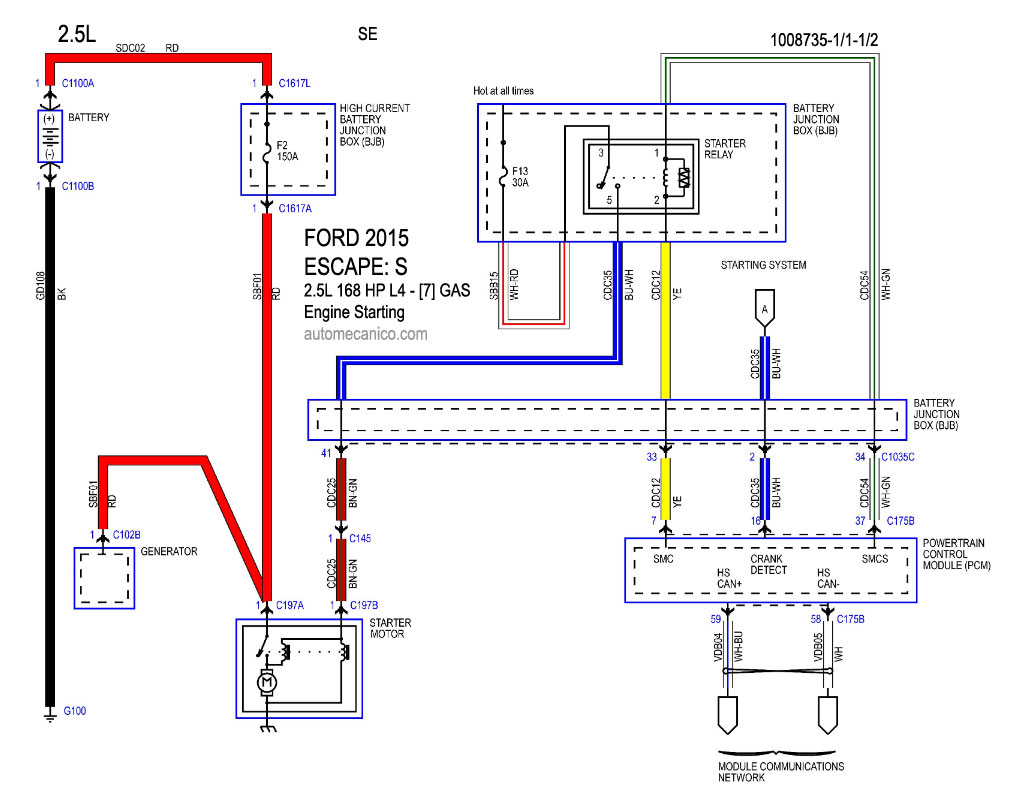

| 2.5L - 4 Cil. - Starter - 1/2 | Engine Starting |

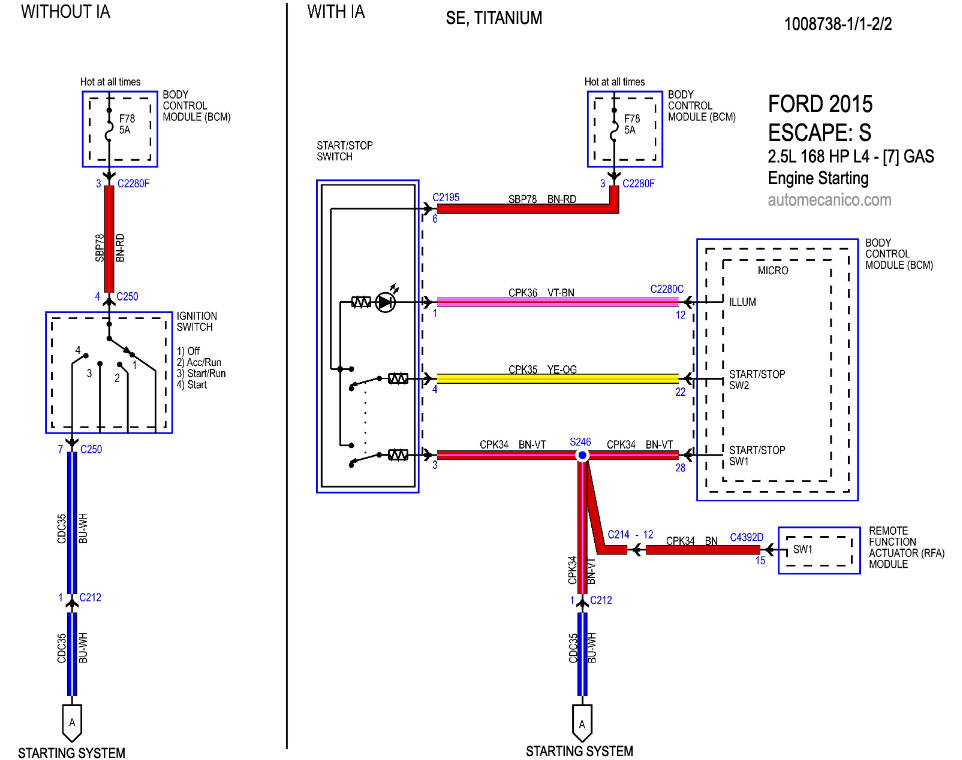

| 2.5L - 4 Cil. -Star Stop Button - 2/2 | Engine Starting |
