GMC - Aire Acondicionado - Air Conditioning System

Que es un Diagrama?, para que sirve un Diagrama electrico automotriz?.

Grafica que representa la relacion entre los diferentes componentes de un conjunto, o sistema electrico, permitiendonos ubicar estos componentes dentro de un circuito.

De esta manera se facilita el estudio, y el analisis de un problema; y su posible solucion

Compresor Aire Acondicionado - Air Conditioning Conpressor

YUKON

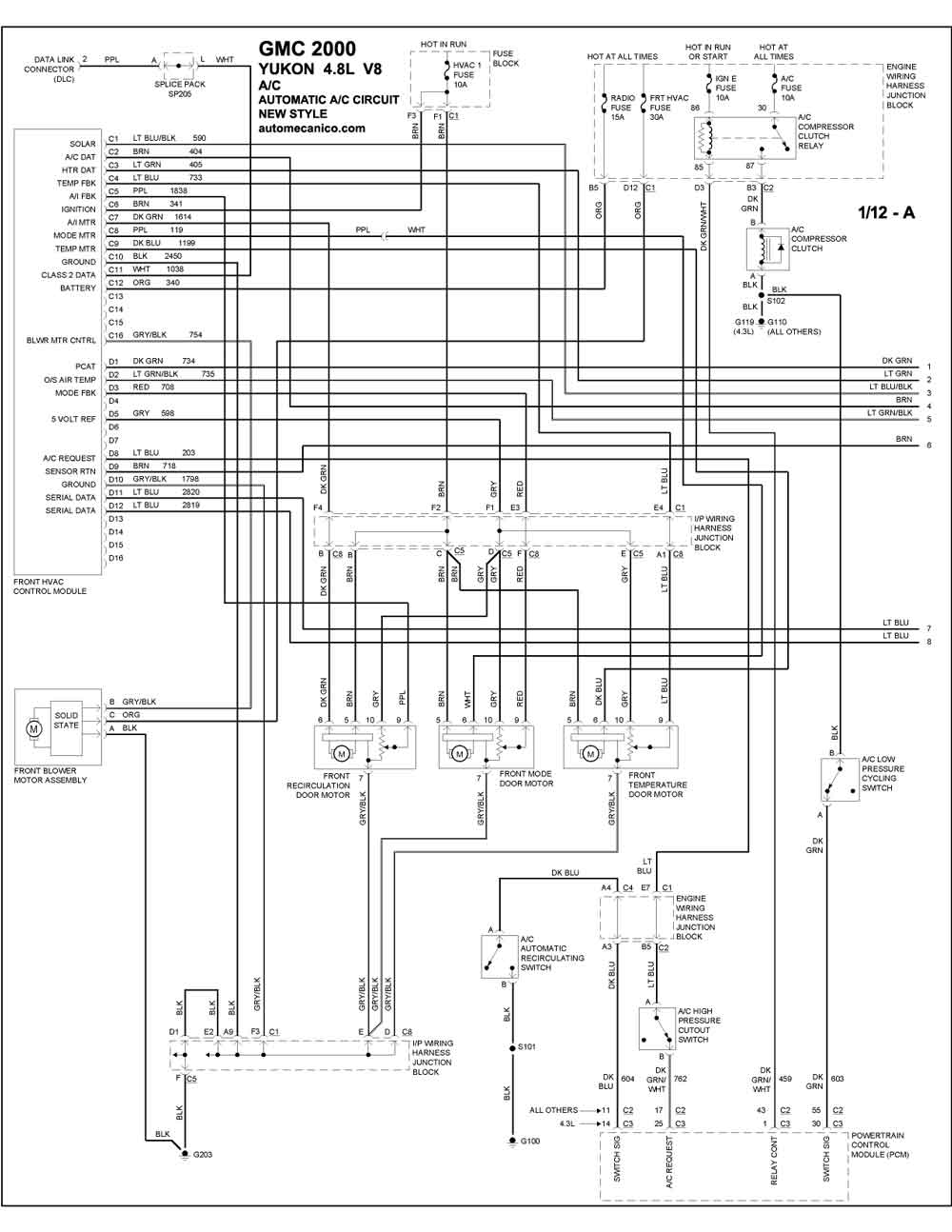

4.8L 8 CILINDROS 1/12A	AUTOMATIC A/C CIRCUIT - NEW STYLE

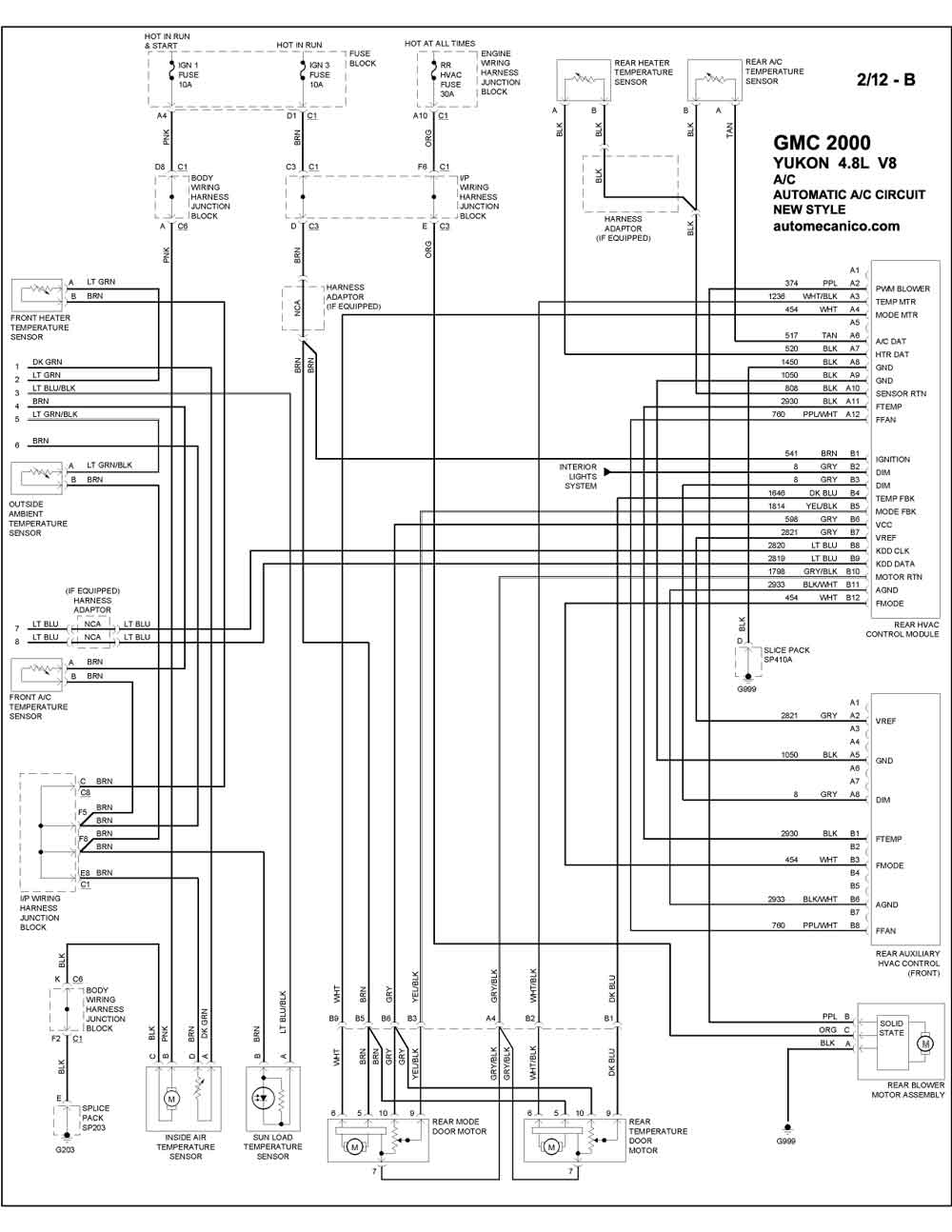

4.8L 8 CILINDROS 2/12B	AUTOMATIC A/C CIRCUIT - NEW STYLE
4.8L 8 CILINDROS 3/12	COMPRESSOR CIRCUIT NEW STYLE
4.8L 8 CILINDROS 4/12	COMPRESSOR CIRCUIT OLD STYLE

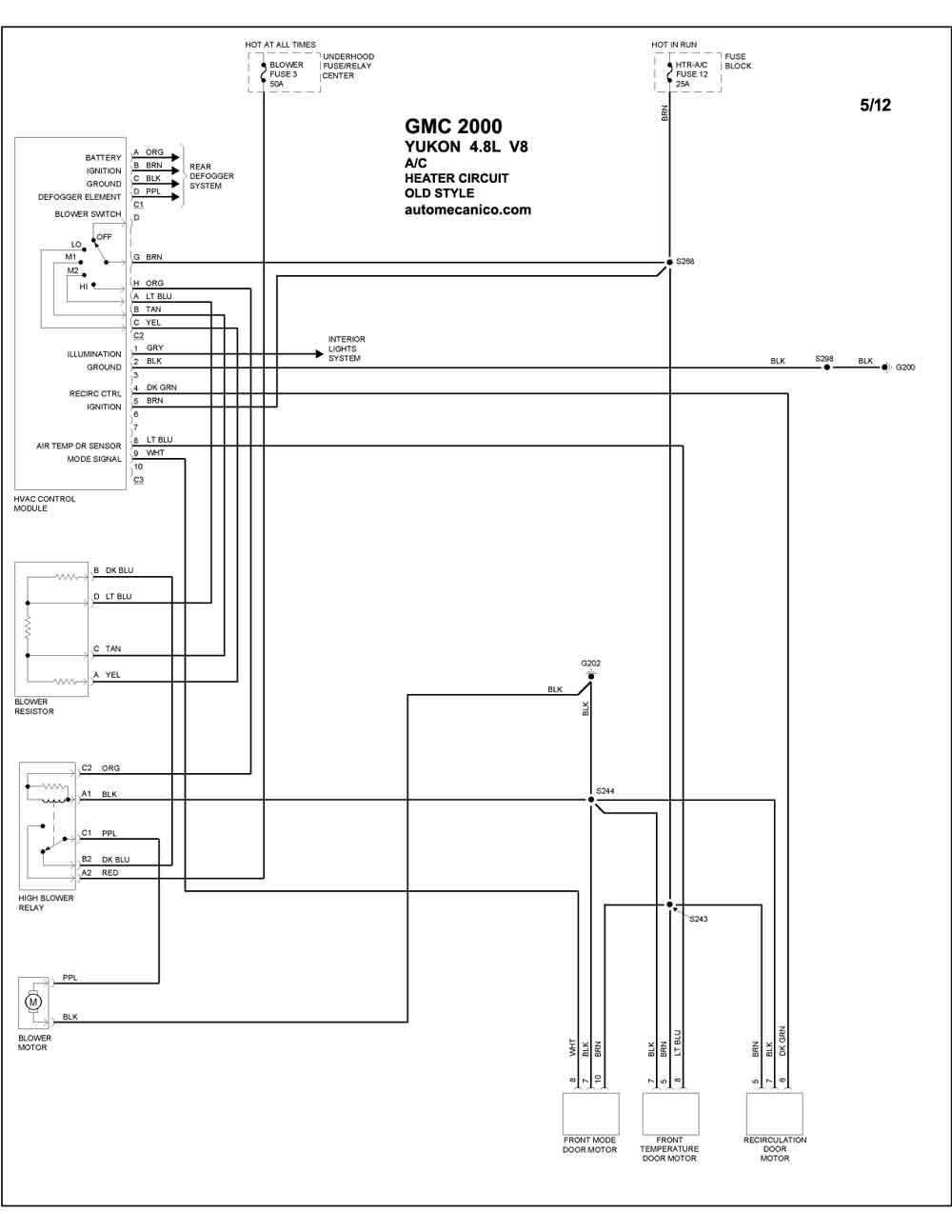

4.8L 8 CILINDROS 5/12	HEATER CIRCUIT - OLD STYLE
4.8L 8 CILINDROS 6/12	HEATER CIRCUIT - OLD STYLE AUXILIARY
4.8L 8 CILINDROS 7/12	MANUAL A/C CIRCUIT - NEW STYLE FRONT

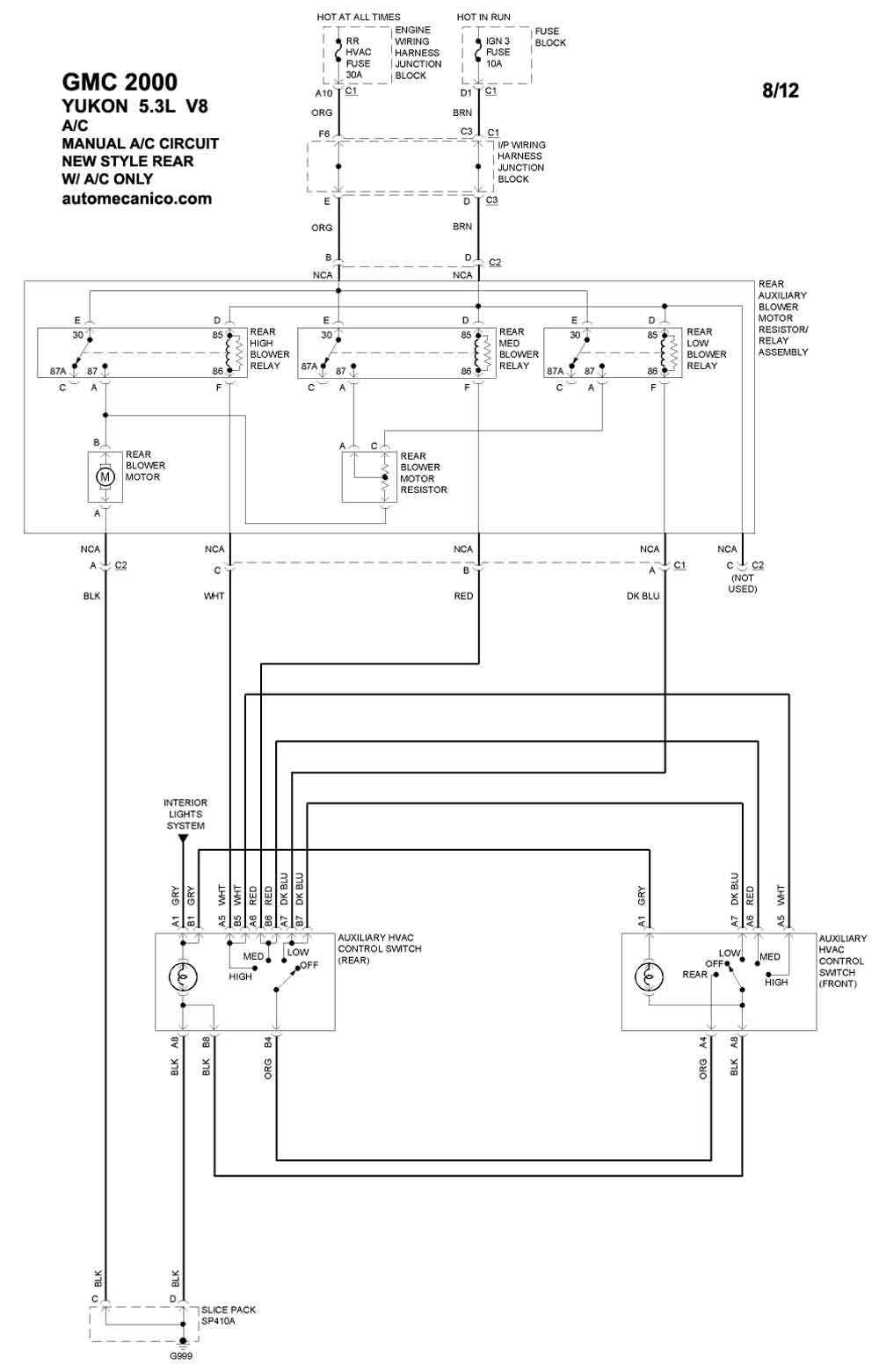

4.8L 8 CILINDROS 8/12	MANUAL A/C CIRCUIT -NEW STYLE REAR W/ A/C ONLY

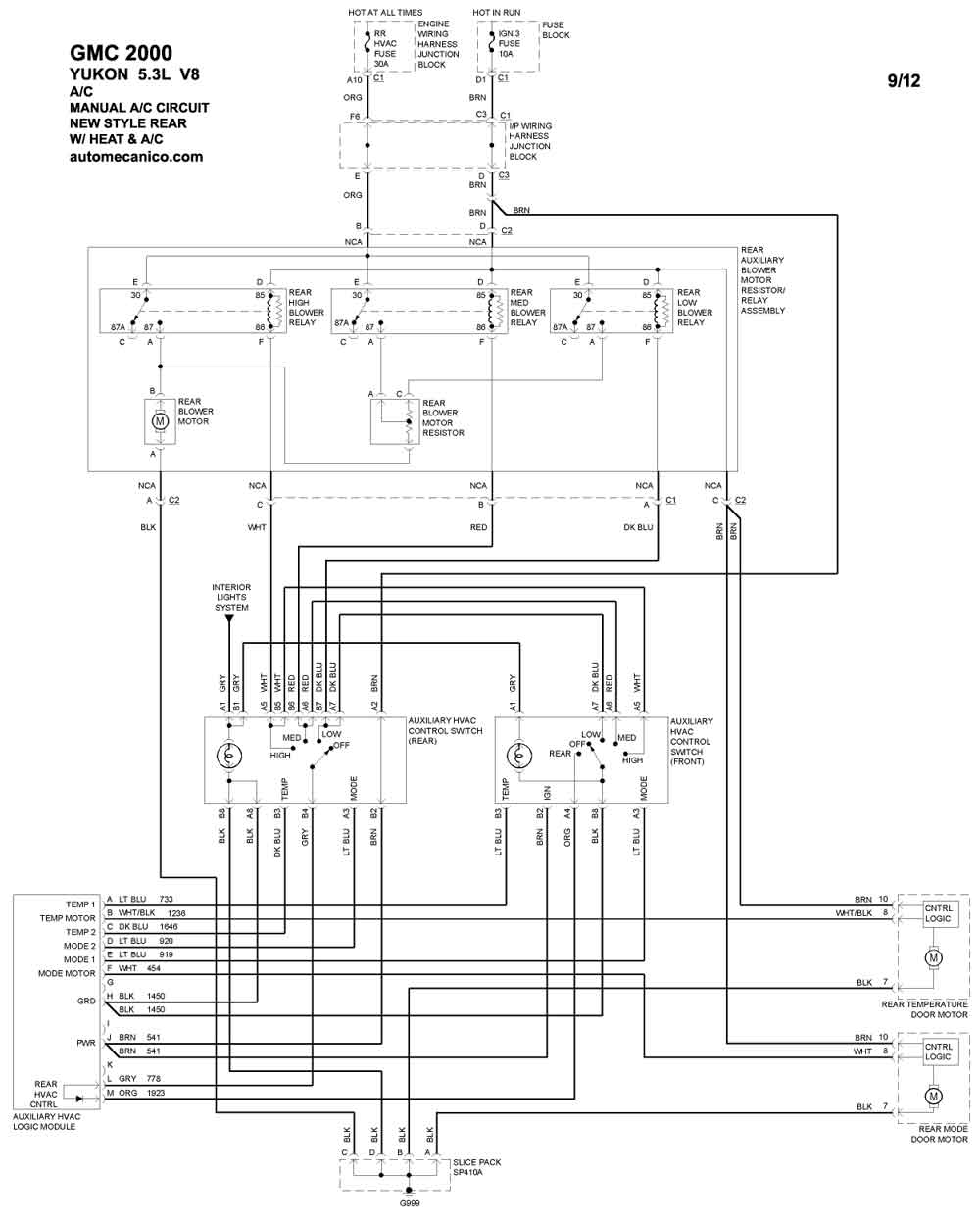

4.8L 8 CILINDROS 9/12	MANUAL A/C CIRCUIT -NEW STYLE REAR W/ HEAT A/C

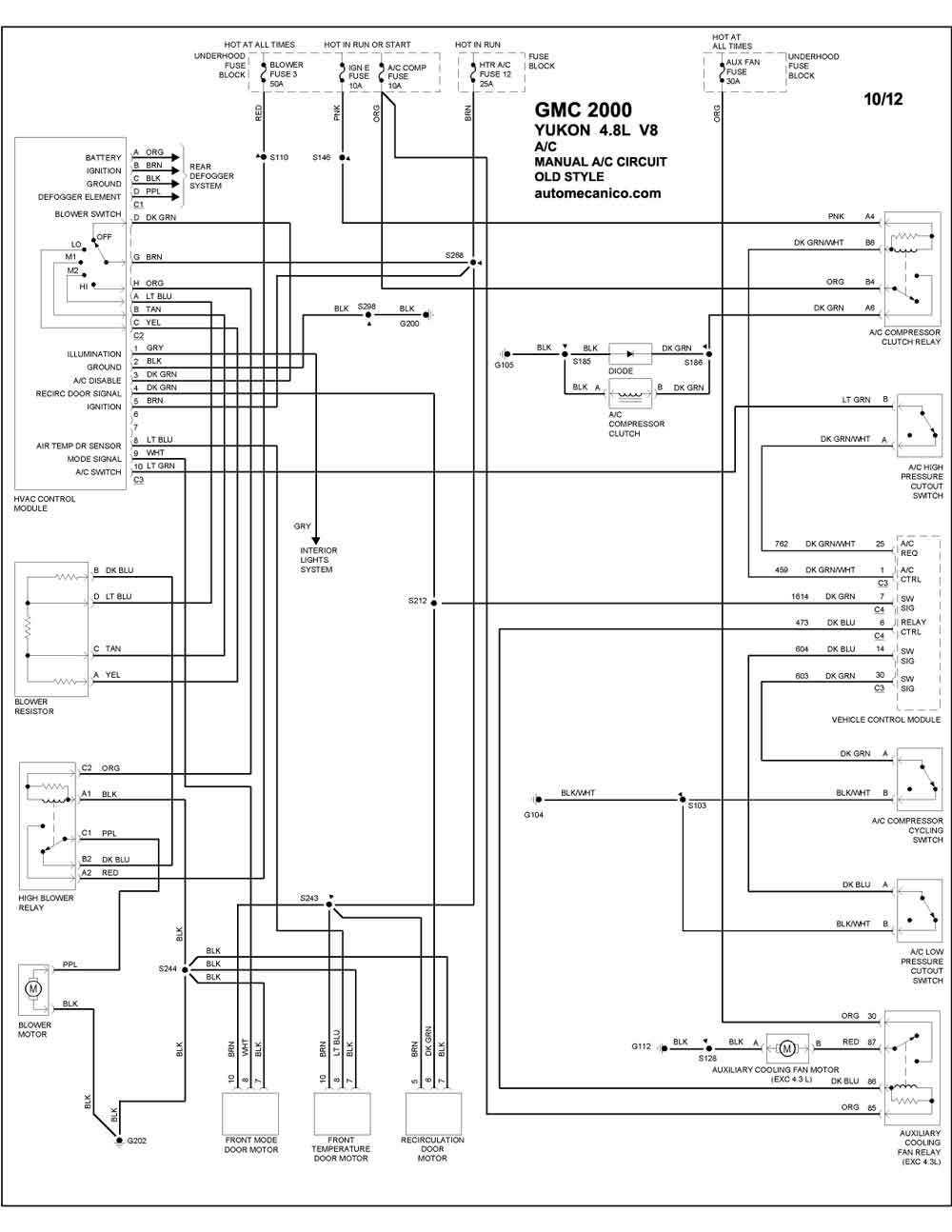

4.8L 8 CILINDROS 10/12	MANUAL A/C CIRCUIT -OLD STYLE
4.8L 8 CILINDROS 11/12A	MANUAL A/C CIRCUIT -OLD STYLE AUXILIARY

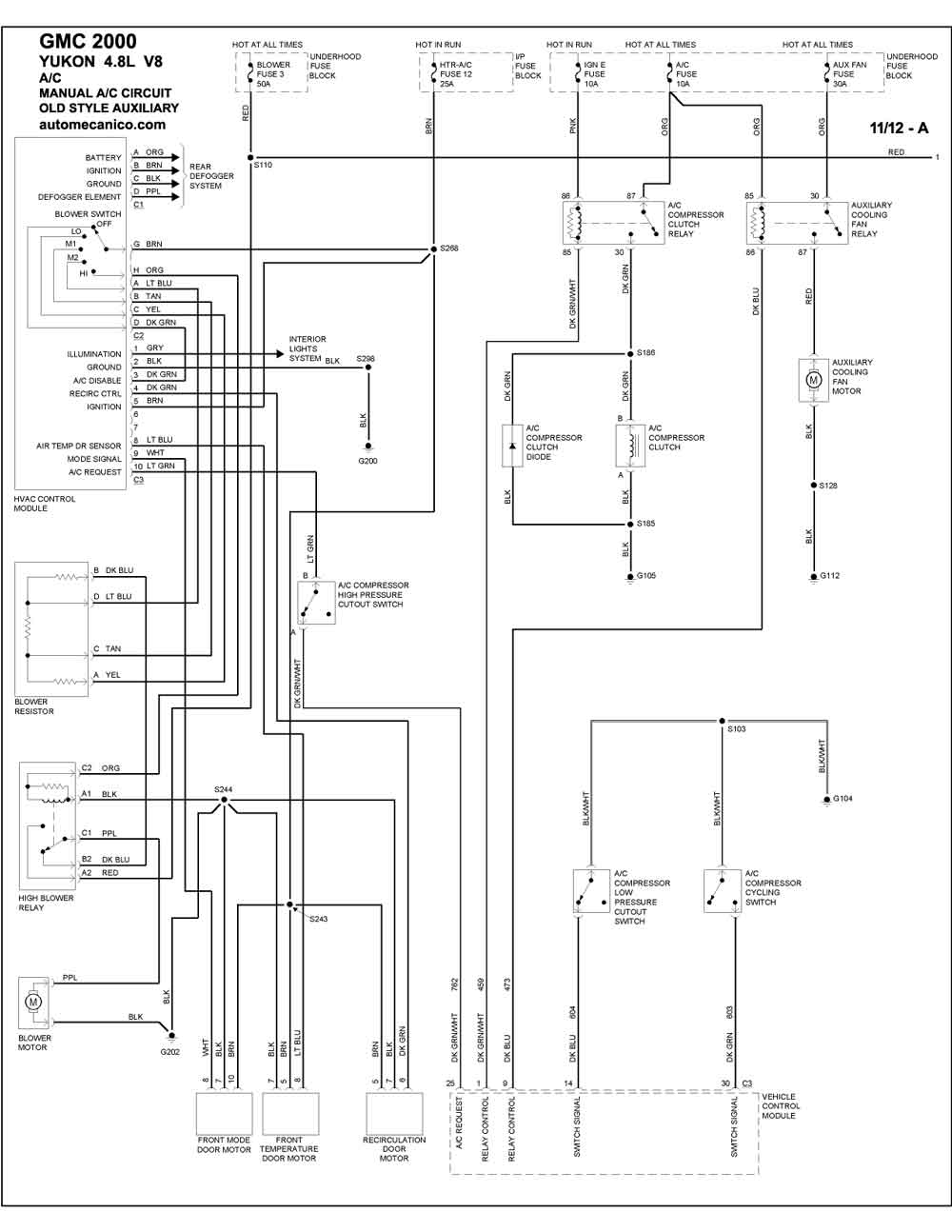

4.8L 8 CILINDROS 12/12B	MANUAL A/C CIRCUIT -OLD STYLE AUXILIARY
YUKON
5.3L 8 CILINDROS 1/12A	AUTOMATIC A/C CIRCUIT - NEW STYLE
5.3L 8 CILINDROS 2/12B	AUTOMATIC A/C CIRCUIT - NEW STYLE

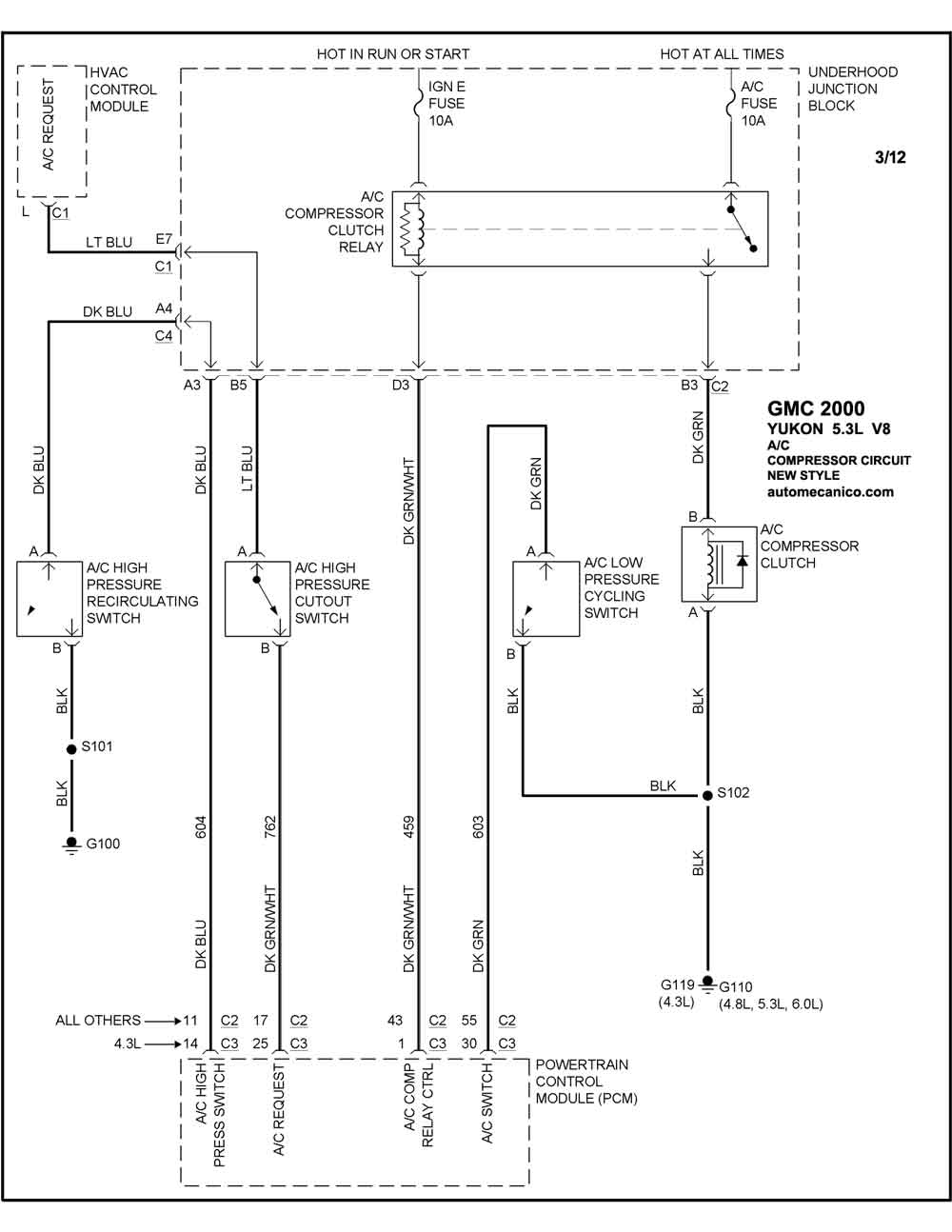

5.3L 8 CILINDROS 3/12	COMPRESSOR CIRCUIT NEW STYLE

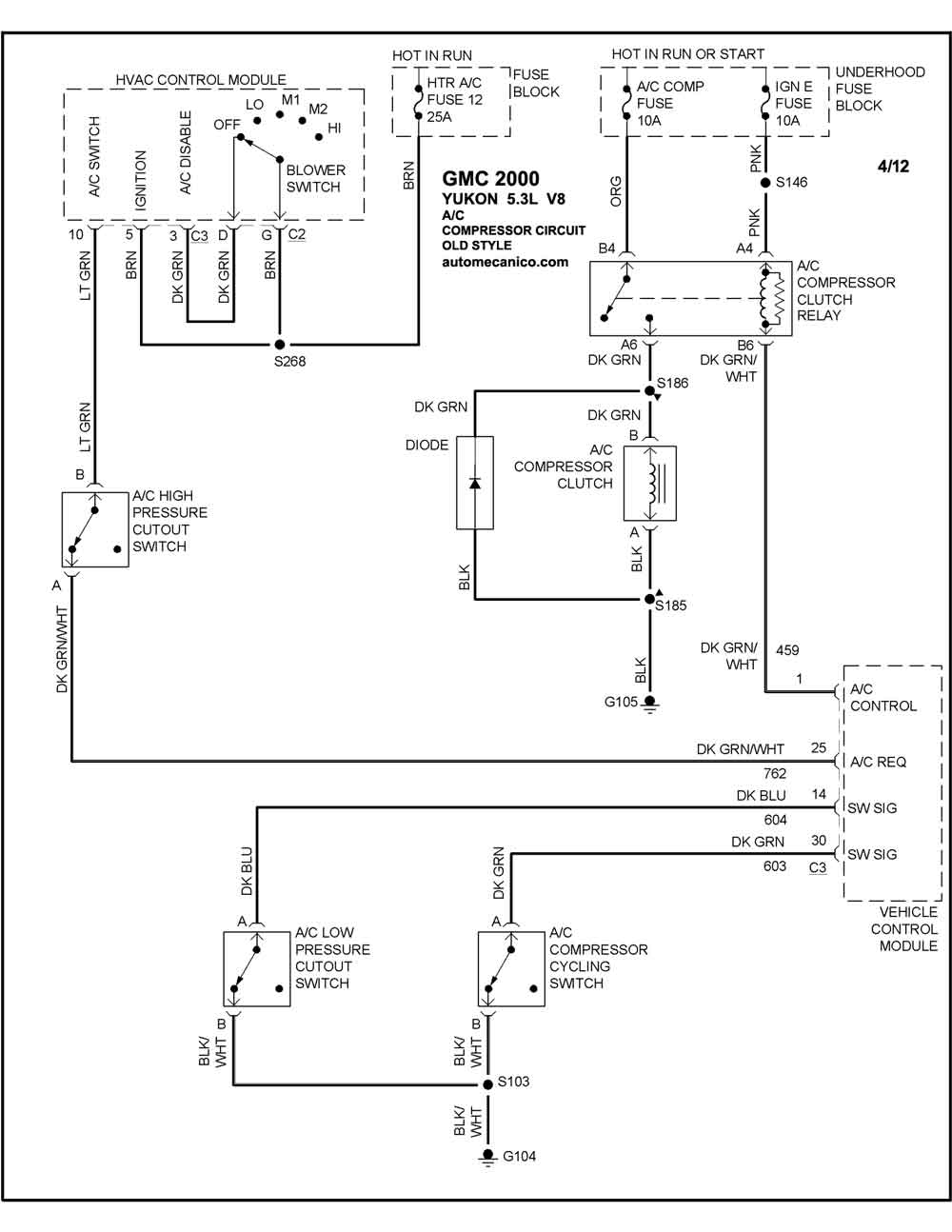

5.3L 8 CILINDROS 4/12	COMPRESSOR CIRCUIT OLD STYLE
5.3L 8 CILINDROS 5/12	HEATER CIRCUIT - OLD STYLE

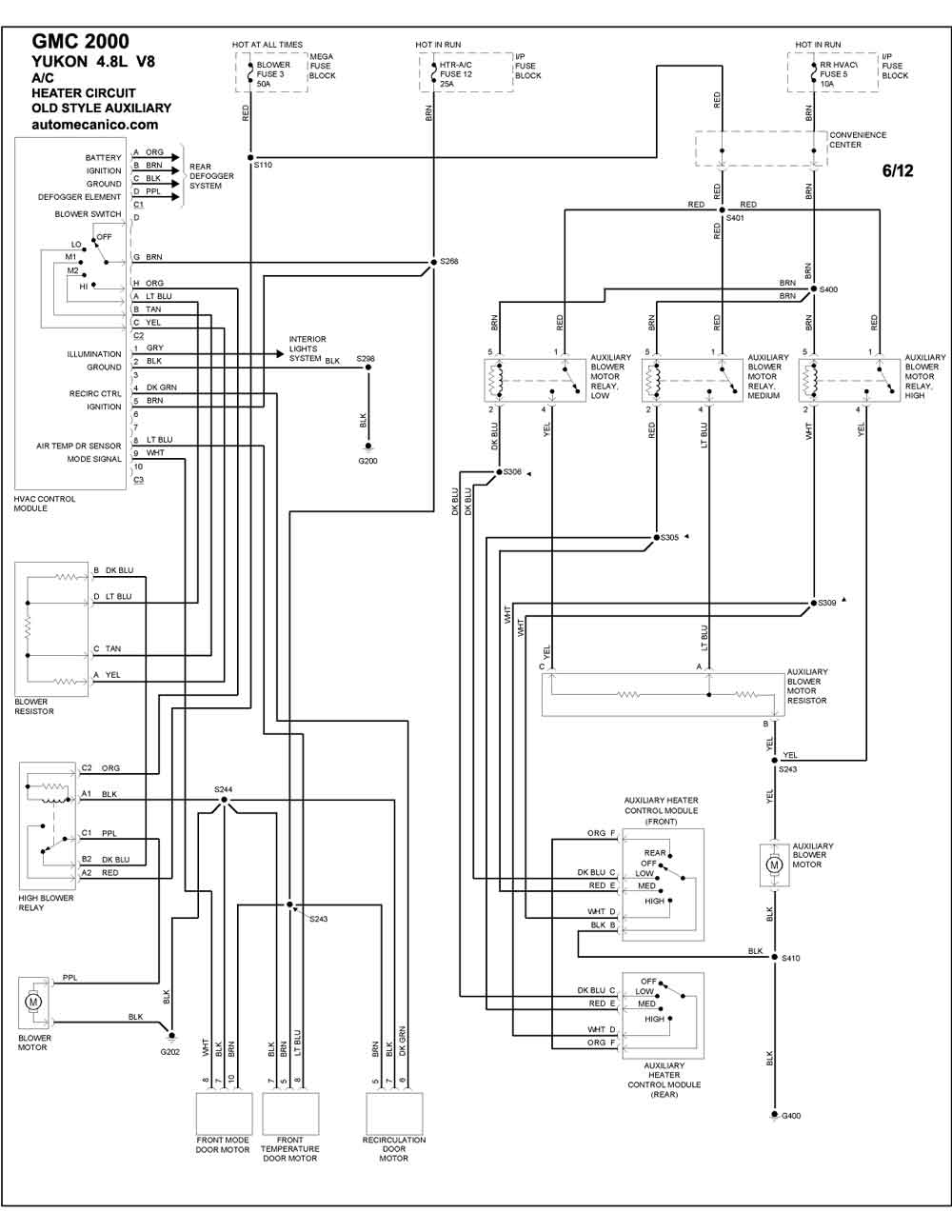

5.3L 8 CILINDROS 6/12	HEATER CIRCUIT - OLD STYLE AUXILIARY

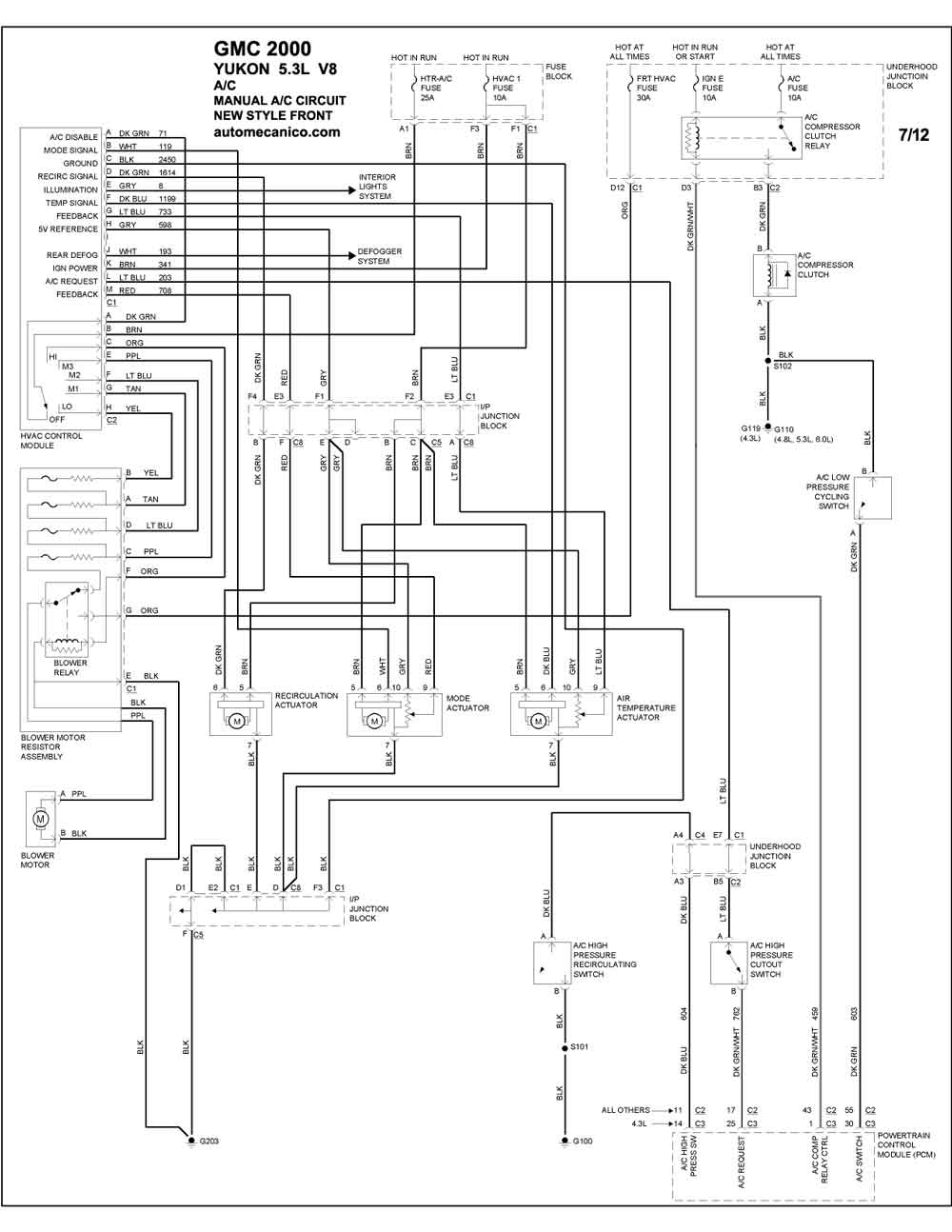

5.3L 8 CILINDROS 7/12	MANUAL A/C CIRCUIT - NEW STYLE FRONT
5.3L 8 CILINDROS 8/12	MANUAL A/C CIRCUIT -NEW STYLE REAR W/ A/C ONLY
5.3L 8 CILINDROS 9/12	MANUAL A/C CIRCUIT - NEW STYLE REAR W/ HEAT A/C
5.3L 8 CILINDROS 10/12	MANUAL A/C CIRCUIT -OLD STYLE
5.3L 8 CILINDROS 11/12A	MANUAL A/C CIRCUIT -OLD STYLE AUXILIARY

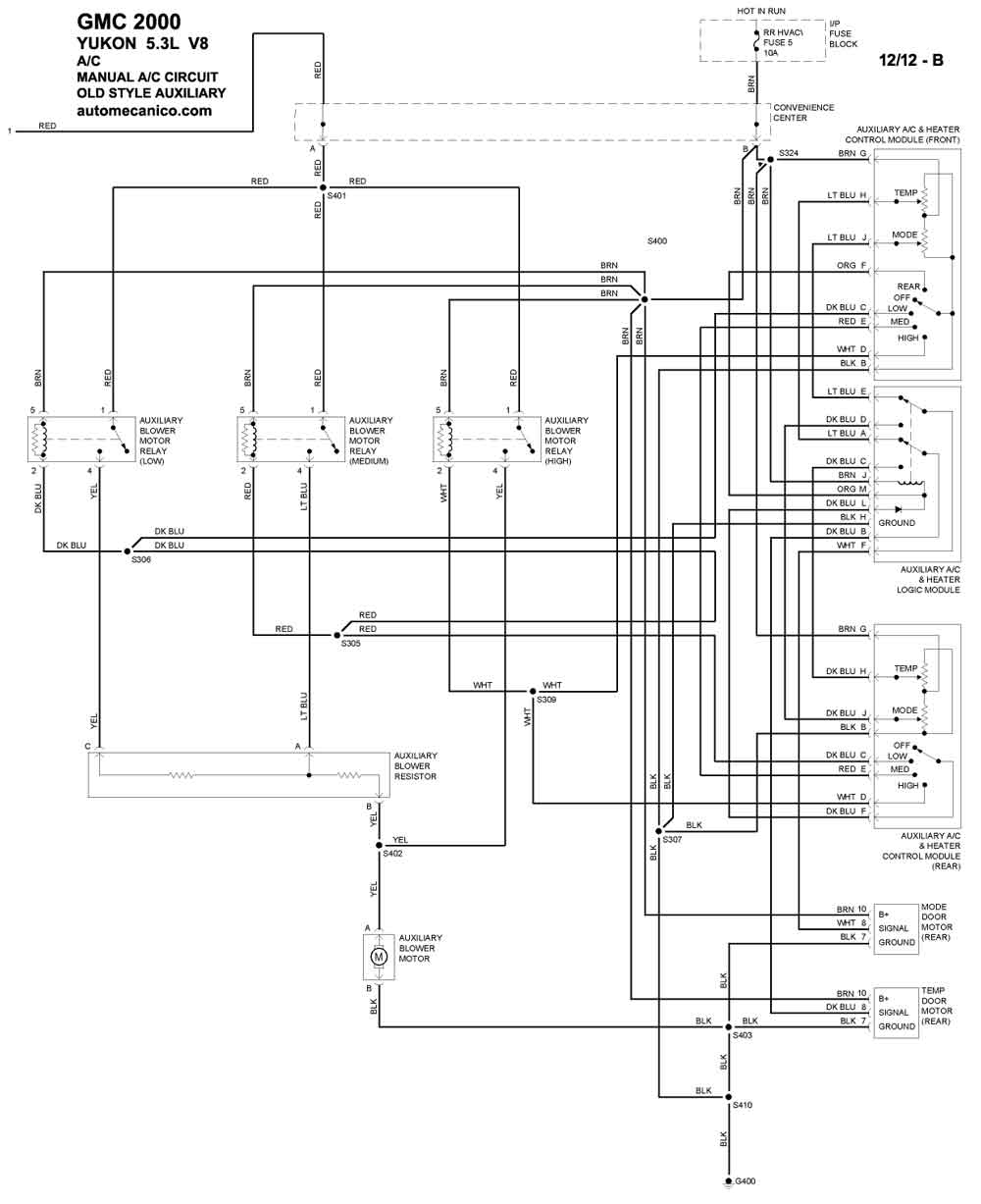

5.3L 8 CILINDROS 12/12B	MANUAL A/C CIRCUIT -OLD STYLE AUXILIARY
	Volver al indice principal

2000 - Diagramas GMC : Circuito Electrico - Aire Acondicionado - 2000
